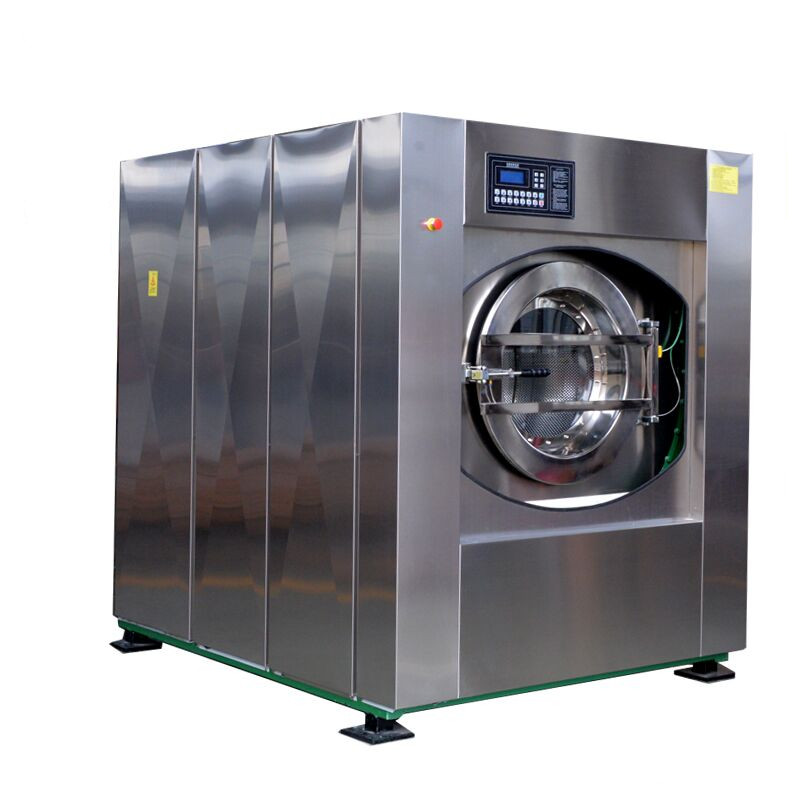

50-120kg Automatic Industrial Washer Extractor

1.30 Editable Programs to meet washing requirements for different
fabrics，Full touch screen controller is options

2.Variable frequency motor & inverter control drive ensures minimal
dehydration vibration and better speed control,working stable in high speed

3.The computer control panel features an advanced and user-friendly
human-machine dialogue interface, making it easy to operate.

4.The shock absorption system composed of dampers and strong springs reduces
the vibration of the machine during dehydration

5.Effective vibration damping rate of more than 95%,standard cloth
dehydration after the water content of less than 70%

6.No Special foundation is required for installation,

7.Made of 304 stainless steel,equipemnt with safe door&emergency stop
& Anti shake

Spec of Full Automatic Washer
Model	XTQ-15	XTQ-20	XTQ-25	XTQ-28	XTQ-30
Capacity	15 KG	20 KG	25 KG	28 KG	30 KG
Inner drum Dia.	630mm	750mm	750mm	800	800mm
Inner drum Depth	480mm	455mm	555mm	580	590mm
Motor	1.5 KW	2.2 KW	2.2 KW	3 KW	4 KW
Inverter	2.2 KW	2.2 KW	3.7 KW	4 KW	5.5 KW
Heating way	Steam heated or Electric heated
Steam consumption	25KG/H	25KG/H	25KG/H	25KG/H	30KG/H
Steam pipe dia.	20mm	20mm	20mm	20mm	33mm
Heating power	6KW	6KW	9KW	12KW	18KW
Nosie	≤65	≤65	≤65	≤65	≤65
Air compressor	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa	0.4-0.6MPa
Water consumption	≤450KG	≤450KG	≤500KG	≤550KG	≤550KG
Votlage【V/P/HZ】	380/220	380/220	380/220	380/220	220/380
LXWXH	1100×1000 x1580mm	1100×1020 x1580mm	1100x1120x1580mm	1260x1160x1600mm	1360x1280x1850mm
Net weight	450kg	500kg	630kg	860kg	1180kg

Model	XTQ-50	XTQ-70	XTQ-100	XTQ-120	XTQ-150
Max.Capacity (Kg)	50	70	100	120	150
Inner drum Dia.(mm)	1080	1080	1200	1300	1470
Inner drum Depth (mm)	575	730	856	900	850
Motor (kw)	5.5	7.5	7.5	11	18.5
Inverter (kw)	7.5	11	15	18.5	22
Heating way	Steam heated or Hot Water or Electric heated
Steam pipe dia.	1"	1"	1"	1 1/2"	1 1/2"
Heating power	30	45	60	72	72
Nosie (dB)	≤70	≤70	≤70	≤70	≤70
Steam compressor (MPa)	0.4-0.6
Air compressor (MPa)	0.5-0.6
Votlage【V/P/HZ】	Standard 380V 3PH+N 50Hz
Overall Dimension (mm) LXWXH	1610x1500x1800	1760x1500x1800	1690x1990x2030	1790x2200x2100	2050×2250×2300
Net weight(kg)	1650	2100	2800	3500	4000
