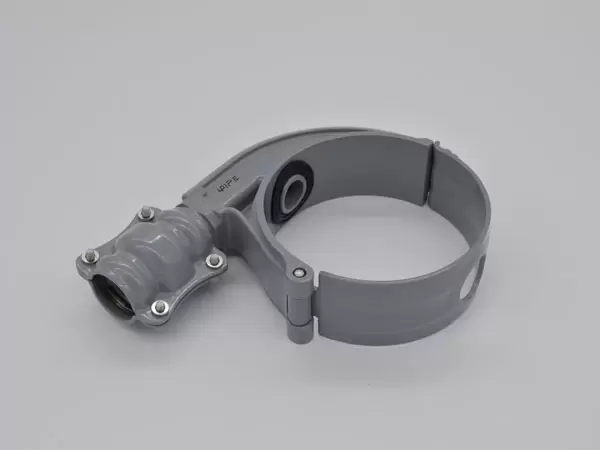

90° Quick Drop

Product Overview

The 90° Quick Drop is a specialized pipeline fitting designed for efficient air distribution and terminal connections in compressed air systems. It enables a clean and effective vertical drop from the main pipeline, ensuring stable airflow delivery to end-use equipment.

As part of advanced modular piping systems such as those developed by UPIPE, the 90° Quick Drop combines structural reliability, ease of installation, and long-term durability. It is widely used in industrial environments where precise air supply and organized pipeline layouts are required.

Application Scope

The 90° Quick Drop is suitable for a variety of fluid transmission applications, including:

• Compressed air systems

• Vacuum pipelines

• Inert gas transport (helium, nitrogen, argon, etc.)

It is particularly effective in factory workshops, automation lines, and pneumatic tool stations where vertical air drops are needed.

Technical Specifications

• Working Pressure: 16 bar

• Working Temperature Range:

• Standard: -20°C to +80°C

• Extended: -60°C to +180°C

• Material Options:

• Sprayed aluminum alloy

• Stainless steel

• Engineering plastics

These materials provide excellent mechanical strength, corrosion resistance, and long-term stability under varying industrial conditions.

Product Parameters

Key Features and Advantages

Efficient Air Distribution Design

The 90° structure allows for smooth redirection of airflow from the main pipeline to vertical drop lines, reducing turbulence and maintaining pressure stability.

Fast and Modular Installation

Designed for compatibility with aluminum piping systems, enabling quick installation without welding and simplifying system modifications.

Energy-Saving Performance

Optimized internal flow design minimizes pressure loss, improving overall system efficiency and reducing compressor energy consumption.

Corrosion Resistance and Clean Operation

High-quality aluminum and stainless steel materials prevent internal rust and contamination, ensuring clean air supply for industrial applications.

System Advantages

• Safe and reliable performance under high-pressure conditions

• Quick installation and easy maintenance

• Energy-efficient airflow management

• Clean and corrosion-resistant internal structure

These advantages make the 90° Quick Drop a key component in modern compressed air distribution systems.

Quality Assurance

Products from Suzhou Jieyou Fluid Technology Co., Ltd. come with a 10-year quality guarantee. After installation, testing, and acceptance, products are eligible for free repair or replacement within ten years under standard warranty conditions.

Warranty Exclusions

The warranty does not apply under the following conditions:

• Product exceeds the agreed warranty period without extension

• Installation or operation does not follow official guidelines or manuals

• Use outside specified environmental conditions

• Improper storage, handling, or external damage (e.g., extreme temperatures, corrosion exposure, impact)

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd. is an innovative enterprise established in 2019, specializing in the development, production, and installation of fluid transport systems. Its product portfolio includes Upipe aluminum piping systems and Liq-pipe solutions.

The company serves global markets across industrial, civil, and specialized sectors, exporting to regions such as North America, Europe, Southeast Asia, the Middle East, and Africa. With certifications including ISO 9001, ISO 14001, and CE, along with multiple patents, it delivers reliable and high-quality fluid system solutions.

Conclusion

The 90° Quick Drop is an essential fitting for efficient and organized compressed air distribution. With its durable construction, flexible specifications, and compatibility with modern aluminum piping systems, it ensures stable airflow, easy installation, and long-term operational reliability in industrial environments.
