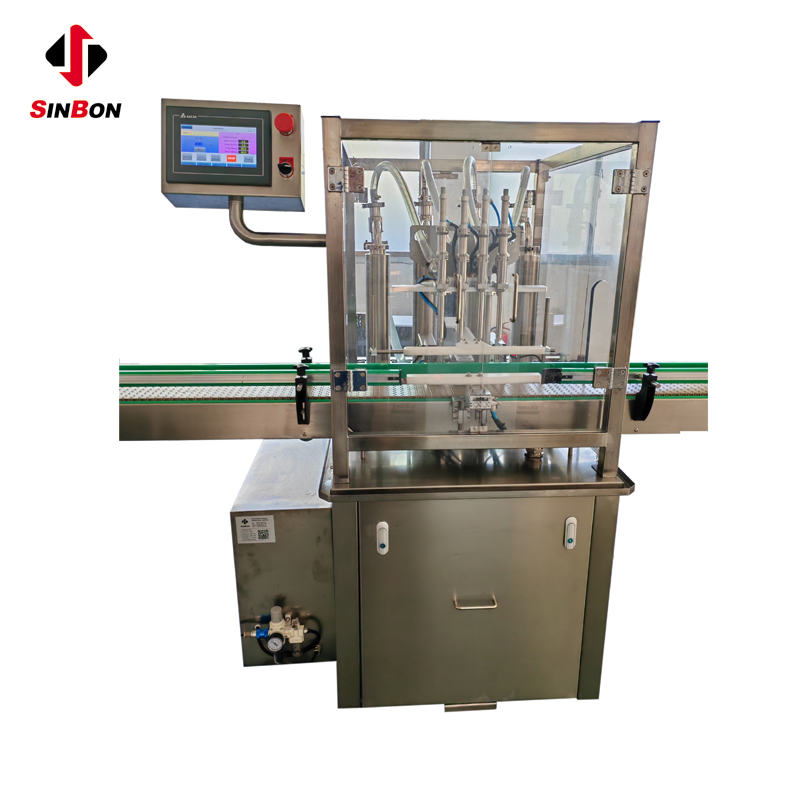

Automatic 4 Heads Piston Pump Filling Machine
Smart piston filling machine, operation is convenient
Maintenance free
Key Features
-
7-inch touch screen display and PLC system control
-
Product parameters setting on the touch screen
-
60 products parameters preset, easy to recall and edit
-
One-button start, simple operation
-
With counter statistics function
-
Piston pump measures filling volume
-
Diving filling nozzle is inserted inside of bottle for filling
-
The left and right position and height of the nozzle are adjustable
-
Electronic speed regulator controls the conveyor speed adjustment
-
Fully automatic quantitative filling, no bottle no filling
-
Filling station with safety protection cover
-
The left and right positions of the front and rear bottle blocking cylinders are adjustable
-
Compatible with multiple size of containers
-
The main structure based on stainless steel 304
-
Chinese and English language operating system
Advantages
-
Small footprint, easy to move
-
Servo driving nozzle movement
-
Servo driving pistons, pistons can be pull out from cylinder by servo motor, easy to clean
-
Multi-head filling with high output and high speed
-
Fully automatic filling saves manpower
-
Miniaturized fully automatic filling system
-
Easy to operate without professional training
-
Easy to maintain and worry-free after-sales
Application
-
It is suitable for quantitative packaging of food, vegetable oil, honey, jam, bean paste, syrup, pear paste, engine oil, daily chemicals, various viscous materials and liquids
Specification
|
Model No. |
HSP-4 |
|
Filling Range |
100-1000ml |
|
Filing Accuracy |
±0.5-1.0% |
|
Capacity |
500ml: 1200-1500BPH |
|
Pump Type |
Piston Pump driven by servo |
|
Pump Material |
Pump material is SUS304 |
|
Nozzle Type |
Pneumatic Diving Nozzle Dia. 10mm |
|
Nozzle Quantity |
4pcs |
|
Belt Width |
114mm |
|
Conveyor Length |
2000mm |
|
Dimension |
2000(L)x1100(W)x1600mm(H) |
|
Air source |
0.4-0.7Mpa |
|
Power source |
AC220V; 50Hz;1Phase; 1.5kw |
|
Working Mode |
Auto/Manual |
|
Packing Size |
L2100xW1200xH1800mm |
|
Weight |
N.W.: 200kg G.W.: 300KG |
Special Material Application
|
Special Material |
Application |
|
Easy Flow liquid like water |
Yes |
|
Foaming Liquid |
Yes |
|
Corrosive Liquid |
Yes (Except for strong acid and strong alkali liquids) |
|
Semi-fluid |
Yes (choose other model) |
|
Liquid with Particles |
Yes (choose other model) |
