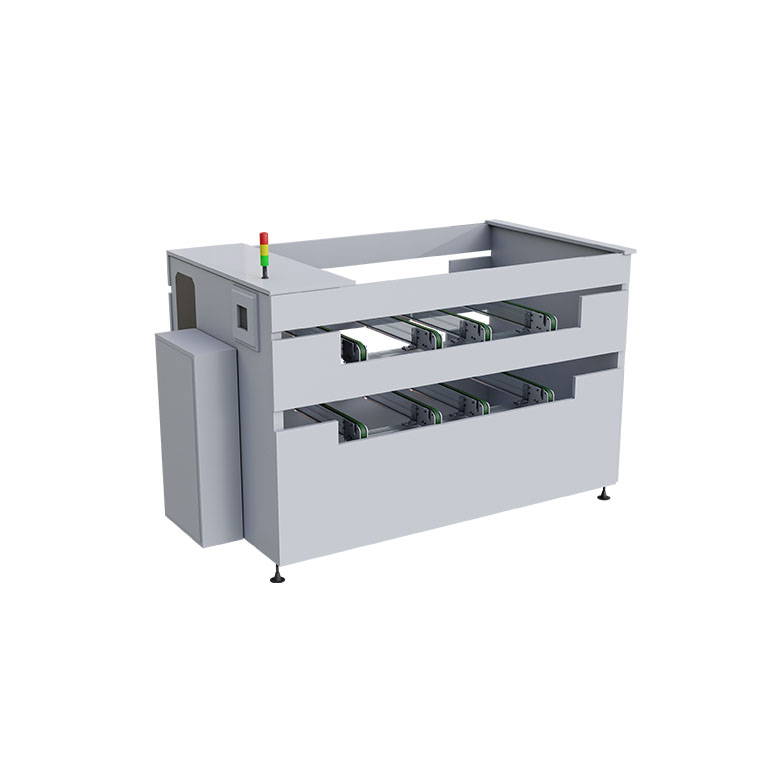

Automatic Hit-hop Tester
Automatic hit-hop tester is mainly used for testing the insulation and voltage resistance of the PV modules. CALOWEN automatic hit-hop tester adopts new technology
https://www.calowenauto.com/automatic-hit-hop-tester.html
Description
Automatic hit-hop tester is mainly used for testing the insulation and
voltage resistance of the PV modules. CALOWEN automatic hit-hop tester adopts
new technology, it has the following advantages:
A: Ground conduction and voltage resistance can be tested with the same
machine.
B: Live part of high voltage is insulation, and no leakage.
C: Test data can be automatically exported.
D: Measurable ground resistance meets IEC61730 test requirements.
E: The test data is automatically saved.
KALOWEN is a professional manufacturer of solar production line equipment
with more than 5 years.We can produce full-auto solar panel production line
machines, semi-auto solar panel production line machines, full-auto solar panel
laminator, automatic production line function machines, manual semi-auto line
auxiliary equipment.
Products Specification
|
No. |
Items |
Descriptions |
|
1 |
Machine model |
CLW-S-HIP-01 |
|
2 |
Protection Method |
Safety protection and safety marks |
|
3 |
Transfer mode |
Belt |
|
4 |
Height |
950mm±50mm |
|
5 |
Working speed |
≤25S |
|
6 |
Power supply |
AC220V, 5060HZ, DC24V |
|
7 |
Power |
2KW |
|
8 |
Working air pressure |
0.5~0.8Mpa |
|
9 |
Working environment |
≤85%RH |
|
10 |
Working noise |
≤60db |
|
11 |
Main body of machine |
Aluminum frame |
|
12 |
Dimension (L*W*H) |
Customized |
|
13 |
Utilization rate |
Uptime≥99% |
