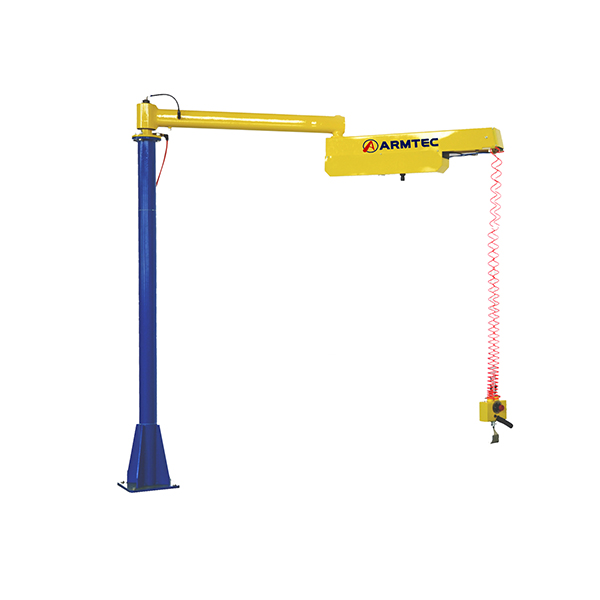

Cable Manipulator Lifting Device Balancing Arm BA 100
The Balancing Arm BA100 is a cable manipulator lifting device, which enables quick, effortless movement of lightweight products throughout your factory.
The BA100 can be supplied with a wide variety of gripping end effector tools to grip most loads-vacuum suction, mechanical or pneumatic clamps, magnets, scissor grips, hooks, mandrels and similar.
At Posilift, safety is our highest priority and an essential element embedded in every product we use. The BA100 is CE certified and developed in strict accordance with UNI EN standards, EC directives, and the full range of safety guidelines and markings.
|
Load capacity (Kg) |
10Kg-100Kg |
|
Vertical lift (mm) |
1mm-1400mm (option 2100mm) |
|
Max radius (mm) |
2250mm-3500mm |
|
Supply pressure (MPa) |
0.6MPa-0.7MPa |
|
Noise (Db) |
<70Db |
|
Air supply (μm) |
Filter compressed air (filtration accuracy 40 μ m), no lubrication |
