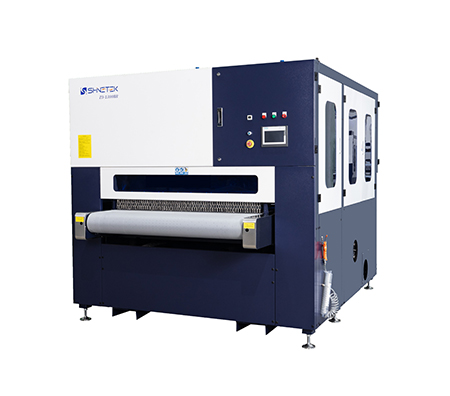

Deburring Brushing Edge Rounding Machine

SURFACE BRUSHING ROLLING BRUSH COMBINATION DEBURRING MACHINE

Small slag removing,edge rounding. Fits for processing workpiece with less holes and good flatness.

Applicable Material：Carbon Steel,Stainless Steel,Copper,Aluminum,etc.

Station Combination：Combination of wide-width sanding belt(B)+omni-direction rolling brush(R)

Conveying And Fixing：Belt conveying+vacuum adsorption or magnetic force fixation

Processing Result：Brushing pattern surface,round and uniform contour

1 Surface Brushing,Slag And Burrs Removing

2 Uniform Rounding Of Inner And Outer Contours

3 Strong Adsorption Force,Suitable For Smaller Workpieces

4 Automatic compensation of grinding force

5 Memory Of Process Parameters

6 Automatic Cleaning Of Adsorption Chamber

7 Intelligent Perception Protection

8 Abrasive Replacement Reminding

Working Width	800mm/1000mm/1300mm
Working Thickness	1-80mm
Conveyor Speed	1-8m/min(frequency control)
Sanding Belt Speed	2.2-11m/s(frequency control)
Grinding Speed	9-18r/s(frequency control)
Revolution Speed	9-19r/min(frequency control)
Rated Voltage	AC 380V/50Hz
MAX.POWER	Vacuum	32KW/40KW/48KW(excluding dust collector)
	Magnetic	21KW/25KW/33KW(excluding dust collector)
Compressed Air	0.6-0.8Mpa
Weight	2200kg/3100kg/3700kg

sheet metal edge deburring machine
