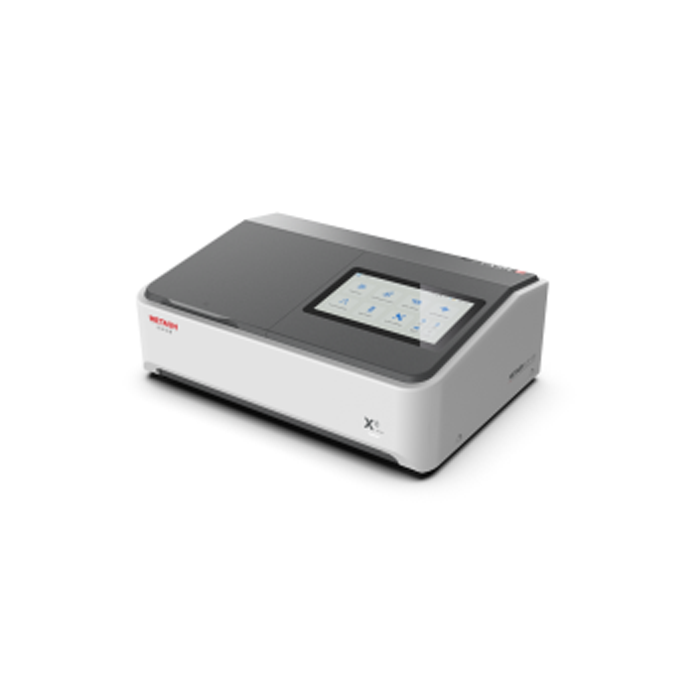

Double Beam UV Visible Spectrophotometer for Laboratory Analysis

Product Description

The Double Beam UV Visible Spectrophotometer is designed for high-precision quantitative and qualitative analysis in pharmaceutical, environmental, food, chemical, and research laboratories. Featuring an advanced double beam optical system, intelligent touch-screen control, and powerful stand-alone functionality, it delivers outstanding accuracy, stability, and operational efficiency for demanding laboratory applications.

Built with a high-performance optical platform and durable mechanical structure, this UV-Vis spectrophotometer ensures reliable results for routine testing, advanced research, and quality control workflows.

Key Features

Large HD Smart Touch Screen

Equipped with a high-resolution touch display for intuitive navigation, faster operation, and improved user experience.

Stand-Alone Multi-Function System

No PC required. Multiple testing modes can be operated directly on the instrument, including:

Spectrum Scanning
Standard Curve Analysis
Kinetics Measurement
Multi-Wavelength Testing
DNA/Protein Analysis

Automatic 8-Position Cell Holder

Supports automatic multi-sample testing to improve laboratory efficiency and reduce manual operation time.

Easy Printing Function

Compatible with standard office printers for direct report printing.

USB Data Output

Test results and reports can be exported directly via USB for convenient data storage and transfer.

Optional Bluetooth and PC Software

Optional Bluetooth communication and professional PC software provide flexible operation and advanced data management.

Large Sample Chamber

Compatible with multiple optional accessories including:

Universal 1–10 cm cell holder
Test tube holder
Film holder
Integrating sphere
Specular reflectance accessory
Peltier temperature control system
Sipper system

High-Performance Optical Grating

Precision grating design delivers:

Lower stray light
Higher wavelength accuracy
Superior long-term stability

Heavy-Duty Optical Base

All optical components are mounted on a 16 mm die-cast aluminum base for enhanced durability and reliable performance.

Technical Specifications

Model	X6	X8	X8A	X8S
Optical System	Single Beam	Double Beam	Double Beam	Double Beam
Light Source	Tungsten Lamp & D2 Lamp	Tungsten Lamp & D2 Lamp	Tungsten Lamp & D2 Lamp	Tungsten Lamp & D2 Lamp
Wavelength Range	190–1100 nm	190–1100 nm	190–1100 nm	190–1100 nm
Spectral Bandwidth	1.8 nm	1.8 nm	1 nm	0.5/1/2/4 nm
Display	7" Touch Screen	10" Touch Screen	10" Touch Screen	10" Touch Screen
Wavelength Accuracy	±0.5 nm	±0.1 nm	±0.1 nm	±0.1 nm
Wavelength Repeatability	≤0.2 nm	≤0.1 nm	≤0.1 nm	≤0.1 nm
Photometric Accuracy	±0.3%T / ±0.002Abs / ±0.004Abs
Photometric Repeatability	≤0.1%T / ≤0.001Abs / ≤0.002Abs
Stability	≤0.001A/h
Photometric Range	-0.3 to 3A, 0–200%T, 0–9999C
Stray Light	≤0.05%T
Control Mode	Stand-alone or Optional PC Software
Data Output	USB / Optional Bluetooth
Power Supply	AC 110/220V, 50/60Hz

Standard Accessories

1 × Spectrophotometer
4 × 1 cm Glass Cuvettes
2 × 1 cm Quartz Cuvettes
1 × Power Cord
1 × User Manual
1 × Dust Cover

Applications

The Double Beam UV Visible Spectrophotometer is ideal for:

Pharmaceutical testing
Water quality analysis
Environmental monitoring
Food and beverage testing
Chemical analysis
Academic research laboratories
Industrial quality control labs
