Electric Vehicle Application
Laminated busbar is a connection bar with a multi-layer composite structure.
Laminated busbar is a connection bar with a multi-layer composite structure. Compared to the traditional complex wiring methods used, laminated busbar provides a highly technical and easily designed distribution system with a clear structure. It is characterized by repeatable electrical performance, low inductive impedance, high interference immunity and high reliability, and can therefore used as an electrical connection component for some high-power modules.
Features
· Multiple complex bends to achieve complex installation requirements

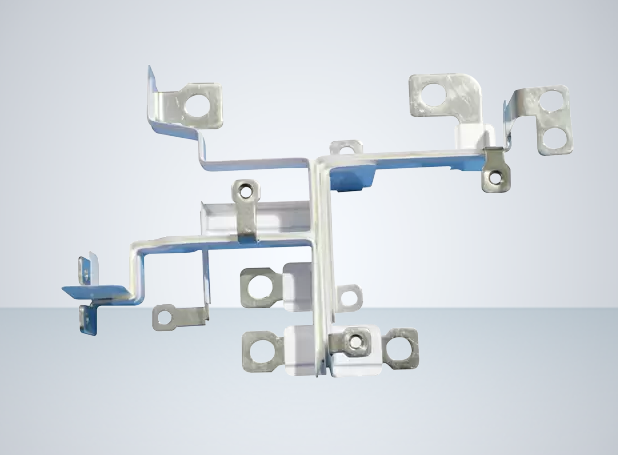

Controller Laminated Busbar
| Item | Parameters |
| Voltage | 720V |
| Current | 135A |
| Insulation withstand voltage | 2.7KV -DC-60s, no breakdown, no flicker |
Controller Laminated Busbar
| Item | Parameters |
| Voltage | 600V |
| Current | 50A |
| Insulation withstand voltage | 2.5KV -AC-60s, no breakdown, no flicker (leakage current ≤3mA) |
Controller Laminated Busbar
| Item | Parameters |
| Voltage | 500A |
| Current | 20A |
| Insulation withstand voltage | 3.5KV -AC-60s, no breakdown, no flicker (leakage current<3mA) |
Controller Laminated Busbar
| Item | Parameters |
| Voltage | 12V |
| Current | 20A |
| Insulation withstand voltage | 500V -DC-60s, no breakdown, no flicker (leakage current ≤2mA) |
Controller Laminated Busbar
| Item | Parameters |
| Voltage | 500V |
| Current | 50A |
| Insulation withstand voltage | 2.2KV -AC-60s, no breakdown, no flicker (leakage current ≤3mA) |
