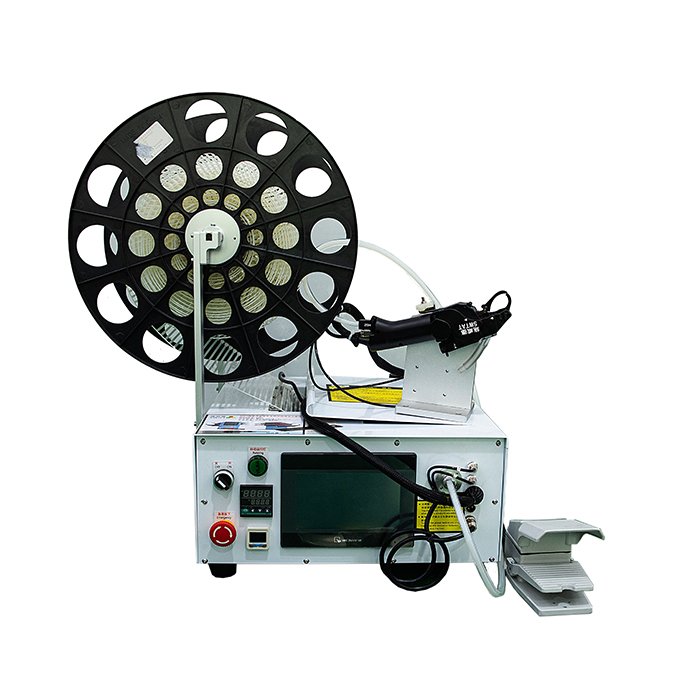

Hand-held automatic reel cable tie machine with fixture

The Swift handheld integrated cable tie machine is a high-efficiency bundling device designed for automated production

Parameters：

Model	SWT25100HC
Cable Tie Spec	2.5X 100 mm
Min binding Dia.	Ø2mm
Max binding Dia	Ø18mm
Tact Time	1.0s/PCS
Electric Power	Host AC 220V 50/60 Hz
	Gun DC 24V （Auto switch）
Pneumatic Pressure	5 Kg/ cm²
Size(The machine can put above on the assembly line)	Host:L710XW540XH740mm
	Gun	L250X H102 X T64mm
Weight	HostHoH	30 kg
	Gun	0.75kg

Model	SWT36200HC
Cable Tie Spec	3.6 X 200 mm
Min binding Dia.	Ø20 mm
Max binding Dia	Ø40 mm
Tact Time	1.3 s/PCS
Electric Power	Host AC 220V 50/60 Hz
	Gun DC 24V （Machine conversion）
Pneumatic Pressure	5 Kg/ cm²
Size(The machine can put above on the assembly line)	Host	L710 X W550 X H230 （Height of the tray containing material: 740）
	Wasting recycle	L350 X W360 X H400
	Gun	L260X H77 X T46mm
Weight	HostHoH	30 kg
	Wasting recycle fixture：	20kg
	Gun	0.9 kg

Reviews

There are no reviews yet.

Be the first to review “Hand-held automatic reel cable tie machine with fixture”

Category: Machinery
