KSDC-8606B/B1 Centralized Dust Collector
86 series central dust collectors are the second generation of Kaisen centralized dust collector, which is more versatile.
Introduction:
86 series central dust collectors are the second generation of Kaisen centralized dust collector, which is more versatile. Upgraded PLC system supports multi-languages and easy to operate. Meanwhile, its compact design, small foot-print and high filtration efficiency are also favored by many laser machine manufacturers at home and abroad.
Parameters:
|
Model |
KSDC-8606B/B1 |
|
Fan Air Flow |
8000/12000±500 |
|
Inlet Air Flow |
6500/9500m3/h |
|
Motor Power |
7.5/11KW |
|
Power Supply |
3x380V/50Hz |
|
Filter Material |
Polyester + PTFE |
|
Filtration Area |
90㎡ |
|
Filtration Efficiency |
≥99.9% |
|
Filtration Precision |
≥0.3um |
|
Filter Cartridge |
6 Pcs |
|
Cleaning Method |
Automatic cleaning |
|
Compressed Air |
0.5~0.6Mpa |
|
Noise Level |
≤75±5 dB |
|
Dimension (WxDxH) |
1620×1750×2150mm |
|
Weight |
1050/1120±20kg |
Options & Accessories:
Independent electric control cabinet
Frequency converter
Explosion proof device
Anti-static filter cartridge
Ducting accessories
Spiral duct
Applications:
Multi-uints welding central dust collector
HAN'S Laser cutting dust collector case
Robot welding house fume disposal solution
Steel pipe plasma cutting disposal solution
ATEX Type central dust collector case
Plasma cutting dust collector case
Related products
-
Metal sheet drying oven for can making
Contact UsThe oven is mainly used to dry the coating on the tin (or aluminum) sheet in the can making process. The entire line mainly consists of conveying, feeding devices, drying, cooling, and material collection and stacking.
-
Solid-liquid incinerator project for Ningxia
Contact UsThis project is a 10,000 tons/year hazardous waste incineration device for Ningxia, which is used for incineration and treatment of hazardous waste produced by our factory.
-
Refinery dry gas tail gas hydrogen
Contact UsRefinery dry gas refers to various tail gases by-produced during the crude oil production process, including catalytic cracking dry gas, coking dry ga…
-

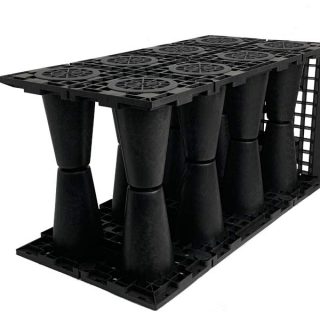

PP Rainwater Module 35T(Black)
