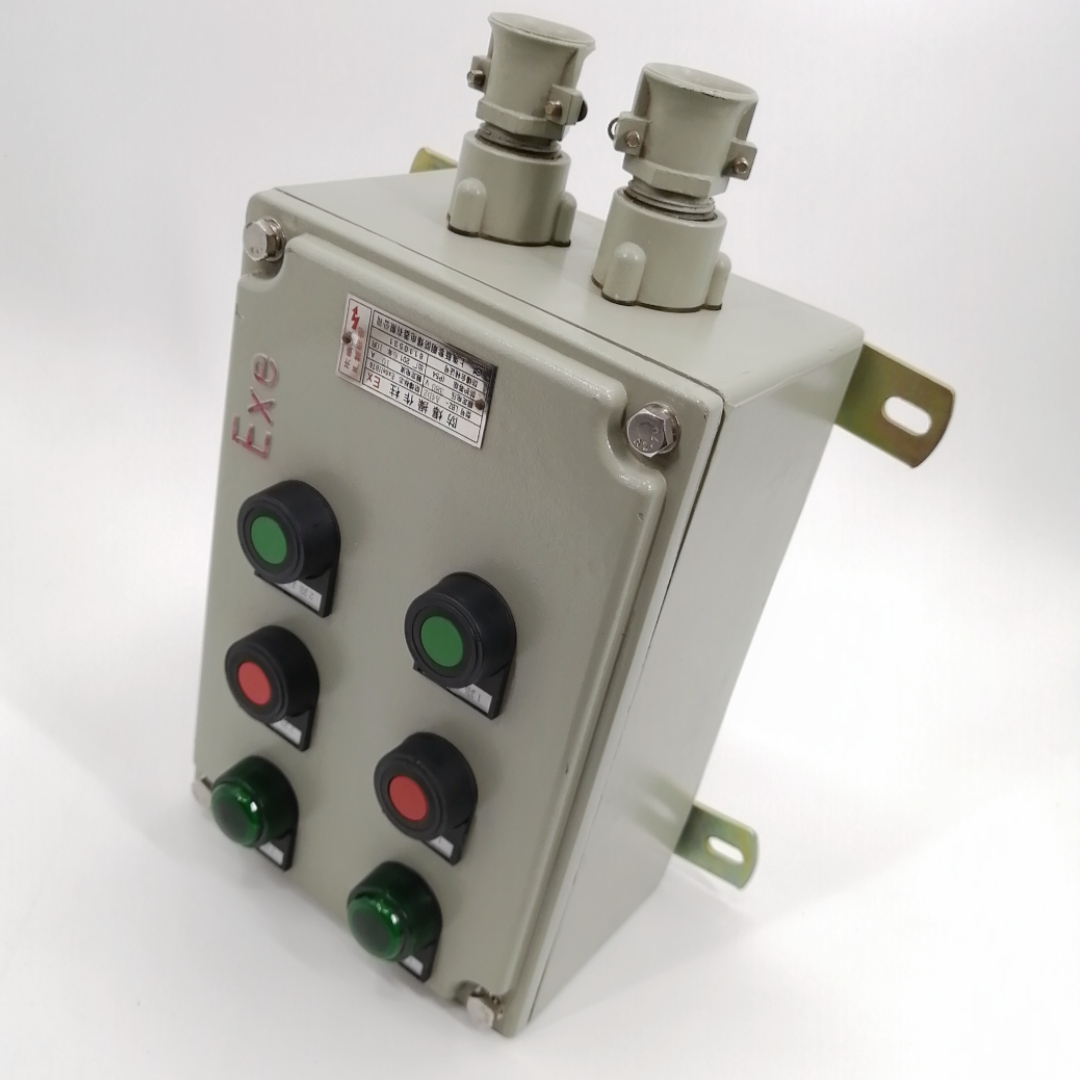

LBZ explosion-proof operating column

Model meaning

Note: 1. This product can be used indoors or outdoors. If used outdoors, it is recommended to equip it with a rain cover to improve the product's waterproof performance;

2. The standard order format for this product is: LBZ-B□A□D□K□R□□□□

B□-□□□/ …         ( (See P95)

A□-□□(□)…  (See P96)

D□-□□(□)… (See P97)

K□-□□ … ( (See P98)

R□-□(□/□) … (See P102)

3. The factory nameplate only reflects the component type and quantity, and the specific specifications of the components are only used as ordering parameters;

4. When equipped with potentiometer, only IV type is applicable. , V -shaped products.

Example: 1. To order LBZ Explosion-proof operating column, equipped with two lights and one switch, vertical installation, with one red and one green indicator light for AC 220 V ; if the switch code is A, the order model is:

LBZ-D2K1L

D2-1  R(AC220)/1G(AC220)

K1-1A

2. If you need to order LBZ Explosion-proof operating column, equipped with two buttons, two lights and one switch , hanging installation, the button contacts are one normally open and one normally closed, and the button head is a red mushroom head self-holding Type button, one is green standard button; indicator light is AC 220 V , one red and one green; the switch code is M, then the order model is:

LBZ-B2D2K1G

B2-1c1/1a1

D2-1R(AC220)/1G(AC220)

K1-1M

Tech Parameters

Accessories & spare parts

Solution examples, appearance and installation dimensions

Introduction

◆Applicable to Zone 1 and Zone 2 of explosive gas environment;

◆Applicable to combustible dust environment Zone 20, Zone 21, Zone 22;

◆Applicable to IA , IIB , IIC Class A explosive gas environment;

◆Applicable to environments with temperature groups of T1~T6 ;

◆Applicable to explosives in oil refining, storage, chemical industry, medicine, textile, printing and dyeing, military industry and military facilities, etc. Explosive hazardous environments;

◆Widely used in electrical control circuits;

◆Diverse solutions are available, and production can be carried out according to the electrical

 system diagram provided by the user .

Model Meaning

Note: 1. The standard order format for this product is: LCZ-□-B□A□D□K□R□□□□

B □-□□□/…(See P103)

A□-□□(□)/… ( (See P104)

D □-□□(□)… ( (See P105)

K□-□□/… (See P106)

R □-□(□/□)…(See P108)

2. The factory nameplate only reflects the component type and quantity. The specific specifications of the components are only used as ordering parameters.

Example: 1. To order LCZ Explosion-proof operating column, used in combustible dust environment, equipped with one meter and one switch, vertical installation, the meter type is ammeter, the range is 100/5; switch Codenamed M, The order model is:

LCZ-DIP-A1K1L

A1-1A(100/5)

K1-1M

2 If you need to order LCZ explosion-proof operating column, it is used in explosive gas environment and is equipped with two buttons, one meter and two lights. It is installed in hanging style. The specifications of the button contacts are one normally open and one normally closed. The button head is a green standard button. One is a red standard button; the meter type is an ammeter with a range of 200/5; the indicator light is AC 220 V , one red and one green. Order model:

LCZ-B2A1D2G

B2-1a1/1a2

A1-1A(200/5)

D2-1R(AC220)/1G(AC220)

Accessories and spare parts

Solution examples, appearance and installation dimensions
