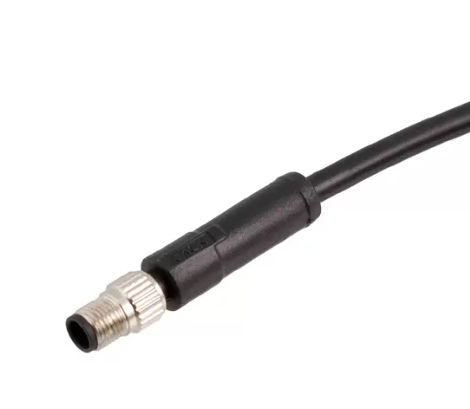

M5 Straight Male Overmolded Plug
European standard connector: M5 series Structure type: Straight overmolded plug Pin type: Male Number of cores: 3, 4pin Wire material: PVC/PUR Shielded: No Wire length: 1/2/5M (customized length
European standard connector: M5 series
Structure type: Straight overmolded plug
Pin type: Male
Number of cores: 3, 4pin
Wire material: PVC/PUR
Shielded: No
Wire length: 1/2/5M (customized length)
Certification: CE, RoHS, UL
Standard: IEC 61076-2-105
| Shell material： | Brass nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Phosphorus copper gold-plated/Brass copper gold-plated |
| Molding material： | PVC/PUR |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-105 |
