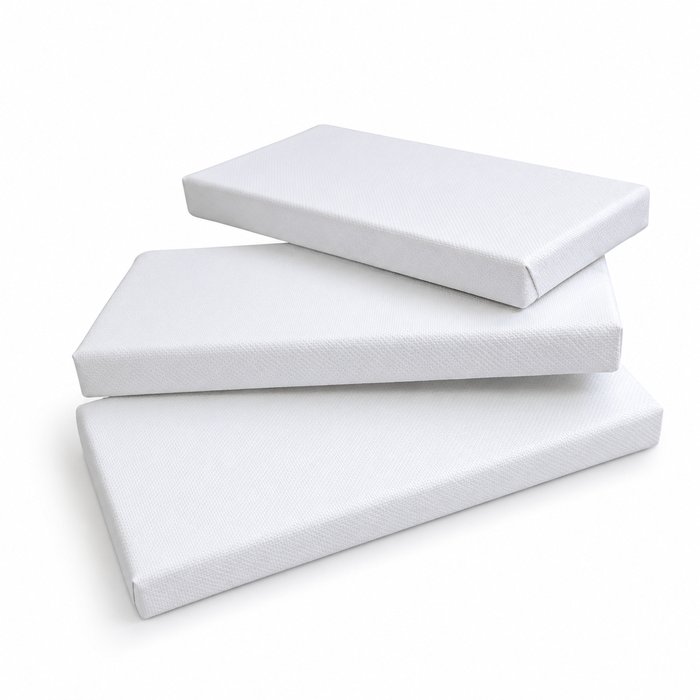

Nanomicroporous Thermal Insulation Board
Nanomicroporous Thermal Insulation Board is a highperformance thermal insulation material made with nanomicroporous fumed silica as the core
Nanomicroporous Thermal Insulation Board
Nanomicroporous Thermal Insulation Board is a highperformance thermal insulation material made with nanomicroporous fumed silica as the core, protected by nonwoven fabric and encapsulated with highbarrier film. It features ultralow thermal conductivity, ultrathin and lightweight structure, A1 noncombustible performance, and excellent hightemperature stability, widely used in industrial furnaces, metallurgy, petrochemical, construction, new energy and cryogenic systems for energyefficient insulation.
Product Features
Ultralow thermal conductivity with nanomicroporous structure
Ultrathin and lightweight, greatly saving installation space
A1 noncombustible, outstanding fire resistance and hightemperature stability
Durable nonwoven protective layer, easy for transportation and installation
Moistureproof and antidust, long service life
Easy to cut and process, adaptable to various equipment structures
Wide working temperature range, stable in both high and low temperature environments
Product Structure
1. Nanomicroporous fumed silica core material
2. Nonwoven fabric / hightemperature resistant glass fiber protective layer
3. Highbarrier aluminum foil composite film
4. Sealed encapsulation structure
Typical Applications
Industrial furnaces, metallurgy ladles, heat treatment equipment insulation
Petrochemical hightemperature pipelines, cracking furnaces, reactors insulation
Building walls, fire partitions, passive fire protection systems
LNG cryogenics, cold chain, pharmaceutical cold storage insulation
New energy battery and energy storage system thermal management
Elevator fire doors, equipment insulation covers
|
Product |
Nano high temperature insulation board |
||||
|
Type |
WHMF-41-850 |
WHMF-41-1000 |
WHMF-41-1100 |
WHMF-41-1200 |
|
|
Classification temperature (°C) |
850 |
1000 |
1100 |
1200 |
|
|
Density |
220-350 |
220-350 |
280-400 |
280-400 |
|
|
Colour |
Grey, Blue |
Grey, Blue |
White |
White |
|
|
Specific heat 800 °C kj/kg.K |
1.07 |
1.07 |
1.07 |
1.07 |
|
|
Rupture Strength (MPa)% |
≥0.3 |
≥0.3 |
≥0.32 |
≥0.5 |
|
|
Permanent linear shrinkage % |
800°C24h |
≤2.0% |
≤0.5% |
≤0.1% |
≤0.1% |
|
1000°C 24h |
≤0.5% |
≤0.5% |
≤0.1% |
||
|
1100°C24h |
≤2.5% |
≤0.8% |
|||
|
1200°C24h |
≤3.5% |
||||
|
Thermal conductivity rate (W/m.K) |
(at 200 °C) |
0.022 |
0.022 |
0.023 |
0.025 |
|
(at 400°C) |
0.024 |
0.024 |
0.026 |
0.031 |
|
|
(at 600 °C) |
0.026 |
0.026 |
0.032 |
0.037 |
|
|
(at 800°C) |
0.030 |
0.030 |
0.034 |
0.042 |
|
Product Advantages
UltraThin and HighEfficiency Insulation
With nanomicroporous structure, thermal conductivity is much lower than traditional materials. Thermal insulation efficiency is 3–6 times that of conventional products, greatly reducing installation thickness and space.
Enhanced Surface Protection
Nonwoven or glass fiber coating improves strength, reduces dust, and protects panels from damage during transportation, cutting and installation.
Excellent LongTerm Stability at High Temperature
Nano core material has minimal performance degradation at high temperature, good thermal stability and small linear change, ensuring reliable longterm use.
Safe, EcoFriendly and NonToxic
Pure inorganic material, A1 noncombustible, no harmful emissions, suitable for strict firesafety and clean applications.
Optional Customization
Customized dimensions and shapes
Multiple thickness options
Aluminum foil composite structure
Hightemperature resistant reinforced type
OEM & ODM manufacturing support
