NMT-TZ-30 Parameters & Types of Large Drying Room

Product Overview

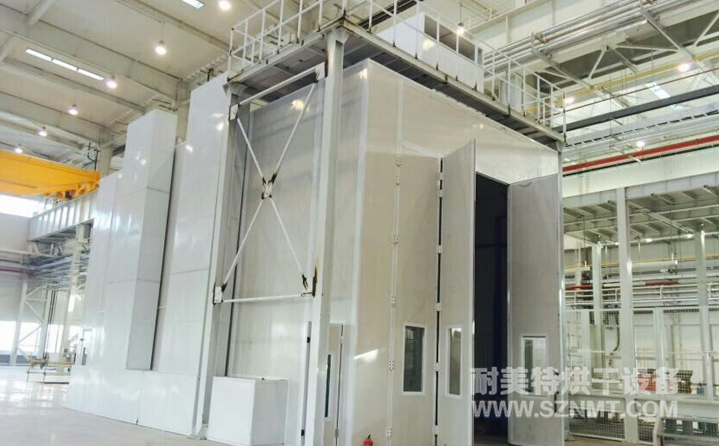

The Electromechanical Component Spray Painting Room is designed for industrial coating applications involving electromechanical components and related workpieces. Its customizable chamber dimensions, flexible heating options, and configurable hot air circulation allow the equipment to be tailored to different coating and drying requirements.

Naimeite provides customized solutions based on workpiece dimensions, required temperature range, temperature uniformity, and production workflow. The chamber structure, door arrangement, conveying method, and control configuration can be selected according to installation conditions and operational needs.

Custom Chamber Design and Structure

The working chamber can be manufactured to customer-specified dimensions. Integrated, combined, and assembled modular structures are available to accommodate different factory layouts, transportation requirements, and installation conditions.

Door options include single front doors, front-and-rear double doors, top-hung doors, and vertical lifting doors. The appropriate configuration depends on workpiece size, loading direction, available space, and handling equipment.

Flexible Heating and Air Circulation

Available heating methods include electric heating tubes, thermal oil, gas, steam, and hybrid heating. Selection depends on the required temperature range, available energy sources, process conditions, and safety requirements.

Customized hot air circulation options include single lower-side air supply, double top air supply, and large front-and-rear air supply. The airflow arrangement can be designed around workpiece placement to support suitable heat distribution and drying conditions.

Conveying and Temperature Control

Workpiece handling options include trolley, roller bed, plate chain, mesh belt, and pusher conveying. Trolley movement can be manual, self-propelled, rack-and-pinion driven, traction driven, winch driven, or integrated with a roller bed.

Temperature control options include digital on-off controllers, time-proportional controllers, and intelligent programmable controllers. Power regulation can use contactors, SCR continuous regulation, or SSR switching regulation, depending on the required control performance and electrical design.

Monitoring and Optional Configurations

A built-in chamber light and door observation window allow operators to monitor workpiece conditions during processing. Optional interfaces include USB, RS485/RS232, network communication, and workpiece parameter measurement connections. Additional provisions for air extraction, vacuum pumping, pouring, or other functions can be incorporated when required.

Special configurations include explosion-proof, cleanroom-grade, and vacuum options, subject to application requirements and engineering assessment.

Technical Support

Naimeite provides free on-site technical training to help customers understand equipment operation. Before ordering, customers should confirm workpiece dimensions, coating requirements, target temperatures, airflow needs, production capacity, and installation conditions to establish a suitable configuration.

Frequently Asked Questions

Can the chamber size be customized?
Yes. Dimensions can be tailored to workpiece size and production requirements.

Which heating methods are available?
Electric, thermal oil, gas, steam, and hybrid heating options are available.

Can the conveying method be customized?
Yes. Trolley, roller bed, plate chain, mesh belt, and pusher configurations can be selected.

Are special configurations available?
Explosion-proof, cleanroom-grade, and vacuum options can be evaluated according to project requirements.

Naimeite offers flexible electromechanical component spray painting room solutions, combining customized chamber design, heating, airflow, conveying, and temperature control to meet specific industrial coating requirements.
