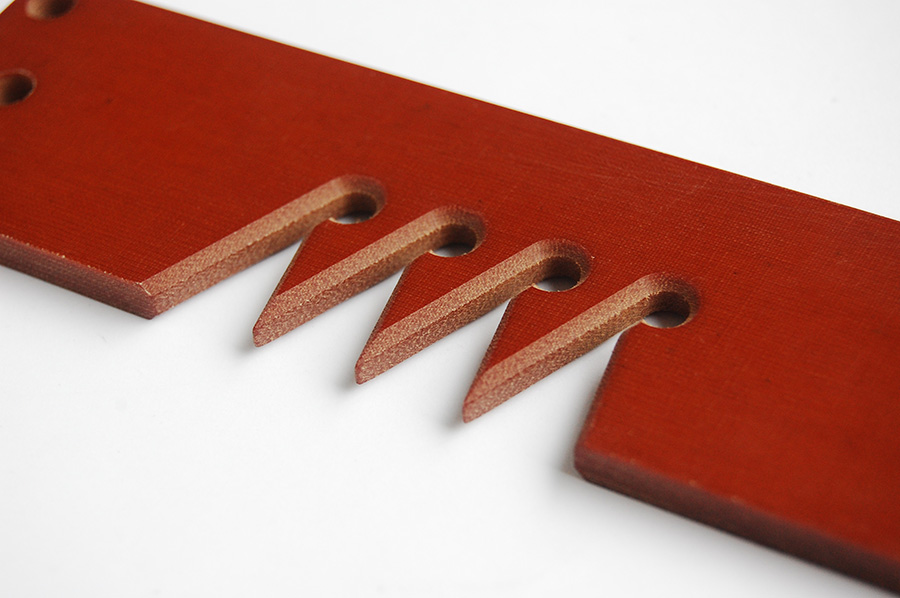

Phenolic muslin resin laminate WS-PLE

Model: WS-PLE

Implementation standard:

IEC/DIN EN 60893 PFCC204

BS 2572 F5

NEMA LE

Sheet specifications are 2440 x1220mm and 1220x1020mm

Tolerance +/- 20mm

Thickness range is 0.2 to 100mm

Thickness tolerance is in accordance with DIN EN 60893-3-4 clause

Technical indicators:

Mechanical properties	Unit	Value	Test norm
Flexural strength	MPa	175	ISO 178
Modulus of elasticity	MPa	8000	ISO 178
Edgewise notched impact strength Charpy	KJ/㎡	9	ISO 179

Electrical properties

Insulation resistance after the immersion in water	Ω	1.00E+08	IEC 60167
Flatwise electric strenght, 90℃in oil	KV/mm	4	IEC 60243-1
Breakdown voltage //, 90℃in oil	KV	20	IEC 60243-1

Thermal properties

Temperature index(TI)	℃	135	IEC 60216
Coefficient of linear expansion //	1.0E-6 / K	18	VDE 0304
Thermal conductivity	W/m.K	0.2	DIN 52612

Physical properties

Density	g/cm³	1.5	ISO 1183
Water absorption 24h 23 degree	mg /%	120/0.9	ISO 62

The product complies with the ROHS directive

The size and thickness can be made according to customer requirements
