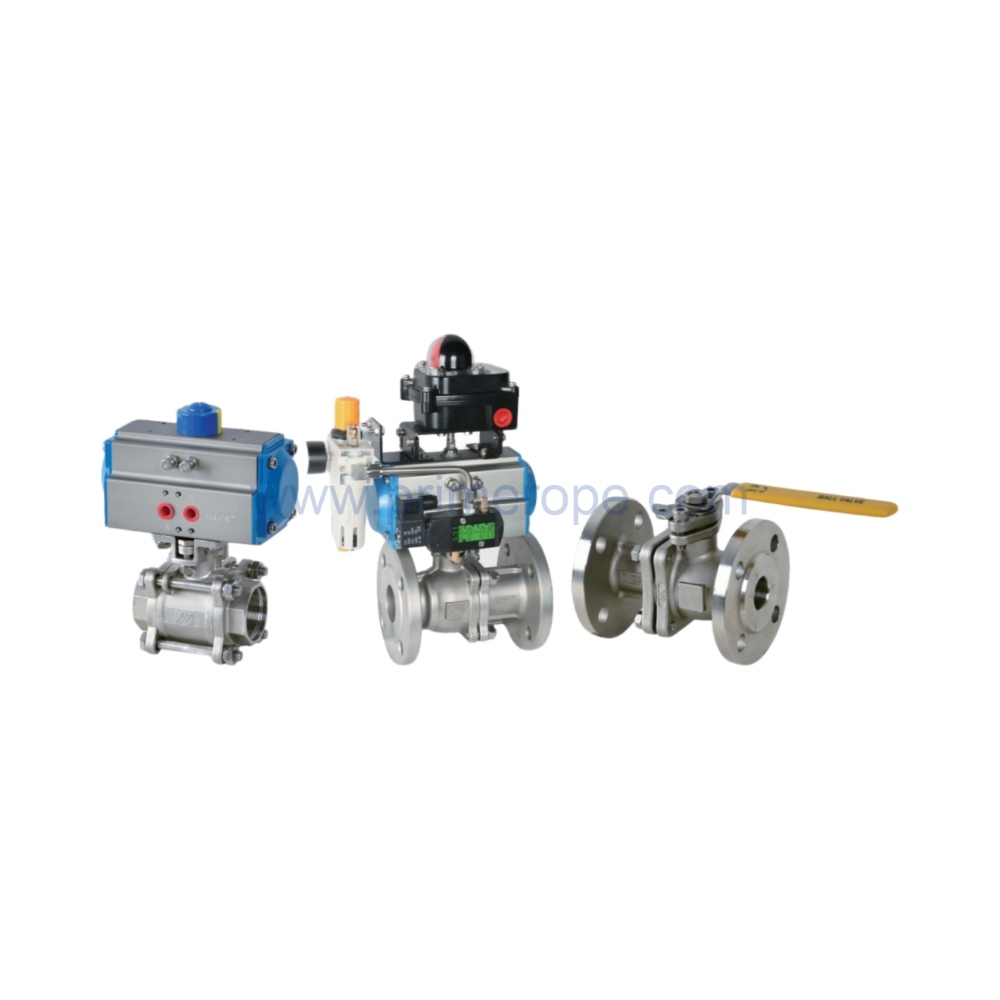

Pneumatic Three Piece Welded Ball Valve

Product model: Q661F
Nominal pressure: PN1.6-4.0MPa
Nominal diameter: DN15-DN50mm
Applicable temperature: ≤ 150 ℃
Product Material: Stainless Steel
Applicable media: water, gas, oil, acidic alkaline, etc

Pneumatic Three Piece Welded Ball Valve

Product Features

Nominal Pressure PN1.6~6.4MPa
Nominal Diameter DN15-200mm
Applicable Temperature T=-30~180℃
Main Material WCB/CF8/CF8M/CF3/CF3M

Executive Standard

Design and Manufacture GB12237-89
Structure Length JB12221-89/User requirements
Connecting  Flange Size and Sealing Form GB9113.3-9113.11-88
Inspection Basis GB/T12237-2007
Steel ball valves for petroleum, petrochemical and related industries

Dimensions

DN L L0 H
15 130 160 80
20 140 160 84
25 150 180 88
32 165 180 105
40 180 180 130
50 200 350 172
65 220 350 184
80 250 400 210
100 280 500 240
125 320 800 285
150 360 800 320
200 400 1200 335
