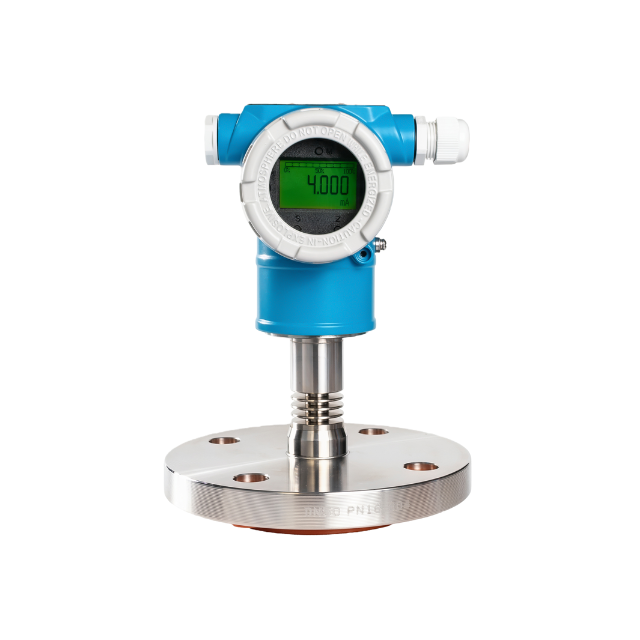

TS1901 Gauge Pressure Transmitter
TS1901 gauge pressure transmitter with monosilicon sensor is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. 1901 intelligent pressure transmitter with reliable ex-proof construction and electronics, suitable in EX areas.
Advantage
• Advanced Monosilicon technology can easily cope with high overload pressure.
• 355° rotation display module, friendly button parameters operation function.
• Accurate filling fluid technology eliminates effects of temperature and static pressure.
• High strength metal electrical protection housing meets the most rigorous environmental application.
• Strong transient voltage resistance to protect terminal module.
• External three buttons menu function enables site operation and does not affect the degree of electrical protection, in a safer and more convenient manner.
• Beautiful appearance, fully show the fashion sense of science and technology.
• Perfect match between internationally leading technology and Chinese smart manufacture.
Features
|
Measuring range |
200Pa~10MPa |
|
Output signal |
4~20mA, 4~20mA/HART, Modbus-RTU/RS485, customer |
|
Reference accuracy |
±0.075% URL, optional ±0.05% URL |
|
Media temperature |
-40~120℃ |
|
Measuring medium |
Liquid, gas, or steam flow as well as liquid level, density and pressure |
|
Power supply |
4~20mA two wire, power supply: 10.5~55VDC 4~20mA+HART two wire, power supply:16.5-55VDC |
|
Diaphragm material |
SUS316L, Hastelloy C |
|
Process connection |
M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F) |
|
Protection class |
IP67 |
|
Approvals |
CSA, ATEX, IECEx, NEPSI, RoHS, CE |
Industry application
• Process control system
• Petroleum industry
• Chemical industry
• Electric power
