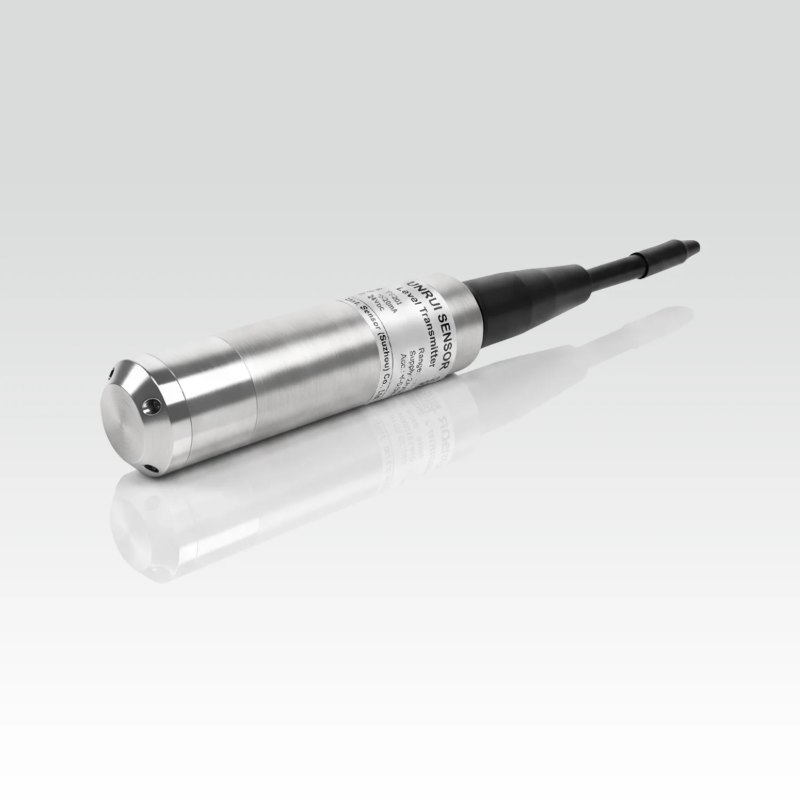

TS201 Submersible Level Transmitter

1. Product Introduction

The TS201 Submersible Level Transmitter is designed for continuous liquid level measurement in demanding industrial environments. With an IP68 protection rating, stainless steel housing, and a fully potted structure, it is suitable for applications requiring reliable submersible measurement and long-term operational stability.

The TS201 uses gauge pressure measurement to determine liquid level and offers measurement ranges from 1 mH₂O to 200 mH₂O, with additional range configurations available within the specified product series. Static accuracy options of ±0.25% FS and ±0.5% FS support different measurement requirements.

To accommodate diverse instrumentation systems, the transmitter offers multiple output signals, including 4–20 mA, 0–5 V, 1–5 V, and 0–10 V, as well as customized options. Its design incorporates sensor compensation, transient voltage protection, dual sealing, and a reinforced cable sealing structure to support dependable performance in suitable industrial installations.

Manufactured by Danrui Sensor (Suzhou) Co., Ltd., the TS201 is suitable for liquid level monitoring in sewage treatment systems, open tanks, and other compatible liquid storage and processing applications. Medium compatibility should be confirmed before use, especially when measuring aggressive or corrosive liquids.

2. Key Features and Advantages

2.1 Wide Measurement Range

The TS201 supports measurement ranges from 1 mH₂O to 200 mH₂O, with selectable configurations to match different tank depths and liquid level measurement requirements.

2.2 High Measurement Accuracy

Available static accuracy options include ±0.25% FS and ±0.5% FS. Original calibration technology and sensor linearity and temperature error compensation help maintain measurement precision.

2.3 Convenient Parameter Configuration

The transmitter features original calibration technology designed to simplify parameter setting without additional tools. User configuration options help adapt the device to different measurement applications and compatible media.

2.4 IP68 Submersible Protection

With an IP68 protection rating, the TS201 is designed for submersible installation under appropriate conditions. Its fully potted construction helps reduce condensation inside the unit, while the dual-seal design supports long-term airtightness.

2.5 Reinforced Cable Sealing

An intensive cable sealing structure helps protect the connection area and supports extended service life under mechanical loading conditions. Proper cable routing, installation, and strain relief remain important for reliable operation.

2.6 Transient Voltage Protection

A built-in transient voltage protection circuit helps protect the transmitter against electrical transients. Appropriate power supply design and system-level electrical protection are still recommended.

2.7 Durable Isolation Membrane

Laser-welded isolation membrane technology supports the durability of the sensing structure. Alternative sensor technologies may be available for selected applications involving viscous or acid-base media, subject to configuration and material compatibility.

2.8 Flexible Signal Outputs

The TS201 offers current and voltage output options for integration with compatible PLCs, data acquisition systems, indicators, and industrial control equipment.

Available outputs include:

• 4–20 mA

• 0–5 V

• 1–5 V

• 0–10 V

• Customized output options, subject to confirmation

2.9 Optional Temperature Measurement

A temperature measurement signal output is available as an option, allowing projects that require both level and temperature information to discuss an appropriate configuration with the supplier.

3. Technical Specifications

Note: Confirm the exact measurement range, output type, pressure connection, material configuration, and electrical requirements when ordering. The selected configuration determines the applicable specifications.

4. Typical Applications

The TS201 Submersible Level Transmitter is designed for liquid level monitoring in compatible industrial environments, including:

• Sewage treatment: Continuous level monitoring in compatible wastewater tanks and treatment facilities.

• Open tank level measurement: Monitoring liquid levels in open storage and process tanks.

• Industrial liquid storage: Level measurement for compatible non-corrosive liquids.

• Liquid processing systems: Integration with compatible process monitoring and control equipment.

• Acid and alkali tank applications: Potential use in selected aggressive liquid applications only when the sensing materials, seals, and optional sensor technology are confirmed as compatible.

For corrosive, viscous, or chemically aggressive media, verify the wetted material compatibility with the supplier before installation. The standard specification lists media compatible with 304 stainless steel and should not be assumed suitable for every acid, alkali, or wastewater composition.

5. Product Configuration and Selection Guide

To select the correct TS201 configuration, buyers should confirm the following parameters:

Measurement range: Select a range based on the maximum liquid depth and expected operating conditions.

Output signal: Choose 4–20 mA, 0–5 V, 1–5 V, 0–10 V, or a confirmed customized output according to the receiving instrument or control system.

Power supply: Confirm that the available supply is within 9–30 V DC.

Pressure connection: Select M20×1.5, M18×1.5, or M12×1, subject to the required configuration.

Measured medium: Provide the liquid composition and operating conditions to verify compatibility with the housing, isolation membrane, and sealing materials.

Temperature conditions: Confirm that the operating temperature and compensated temperature requirements fall within the specified limits.

Optional functions: Specify whether a temperature measurement output or alternative sensor technology is required.

Providing these details helps the supplier confirm a suitable configuration and reduce integration issues during installation.

6. Quality Control and Manufacturing

Danrui Sensor (Suzhou) Co., Ltd. specializes in sensor measurement technology, including the research and manufacturing of pressure and differential pressure sensors. Its production processes integrate precision testing equipment with a Manufacturing Execution System (MES) to support process control and product traceability.

According to the manufacturer's information, each sensor receives a unique serial number that connects assembly, testing, aging, and final inspection records. Factory testing includes high-temperature burn-in, accuracy calibration, and functional validation before shipment.

The company reports the following qualifications and capabilities:

• ISO 9001:2015 quality management system certification.

• ISO 14001:2015 environmental management system certification.

• ISO 45001:2018 occupational health and safety management system certification.

• Nearly 20 patents related to CE-TÜV explosion-proof and flameproof technologies.

• Membership in the China Instrument and Control Industry Association.

• A workforce of more than 50 employees and an established R&D and manufacturing operation.

These capabilities support production consistency, quality documentation, and traceability for industrial sensor applications. Any certification or approval required for a particular project should be confirmed for the exact model and configuration being supplied.

7. Frequently Asked Questions

Q1: What is the TS201 Submersible Level Transmitter used for?

It is used for continuous liquid level measurement in compatible tanks, sewage treatment facilities, and industrial liquid monitoring systems.

Q2: What measurement ranges are available?

The product series lists selectable ranges from 1 mH₂O up to 200 mH₂O, including configurations such as 3 mH₂O, 5 mH₂O, and other specified ranges. Confirm the required range when ordering.

Q3: What output signals does it support?

Available options include 4–20 mA, 0–5 V, 1–5 V, and 0–10 V. Customized output options may be discussed with the manufacturer.

Q4: What power supply is required?

The specified supply voltage is 9–30 V DC, with 24 V DC as the typical operating supply.

Q5: Is the transmitter waterproof?

The TS201 has an IP68 protection rating and is designed for submersible applications. The allowable immersion conditions, cable installation, and sealing requirements should be confirmed for the intended application.

Q6: Can it measure acidic or alkaline liquids?

The standard specification lists non-corrosive media compatible with 304 stainless steel. Selected sensor technologies may be available for acid-base or viscous media, but suitability depends on the actual liquid composition and the materials used in the selected configuration. Confirm compatibility before use.

Q7: What accuracy options are available?

The stated static accuracy options are ±0.25% FS and ±0.5% FS. Select the option based on the project's measurement requirements.

Q8: How is product quality verified?

The manufacturer reports 100% factory testing, including high-temperature burn-in, accuracy calibration, and functional validation. Its MES system supports production process traceability.

Q9: Are OEM and ODM orders accepted?

The manufacturer states that OEM and ODM orders are accepted. Contact the supplier with your technical requirements, target application, and requested customization details.

Q10: What are the payment and packaging options?

The manufacturer lists T/T, L/C, and D/P as accepted payment methods. Export cartons and pallets are used for shipping packaging. Confirm the final terms and packaging requirements when placing an order.

8. Request a Quote

For industrial liquid level measurement requiring submersible protection, flexible signal outputs, and selectable measurement ranges, the TS201 Submersible Level Transmitter provides configurable options for compatible monitoring and control systems.

Contact Danrui Sensor (Suzhou) Co., Ltd. with your required range, output signal, power supply, connection type, medium composition, and operating temperature to confirm compatibility and request a quotation.
