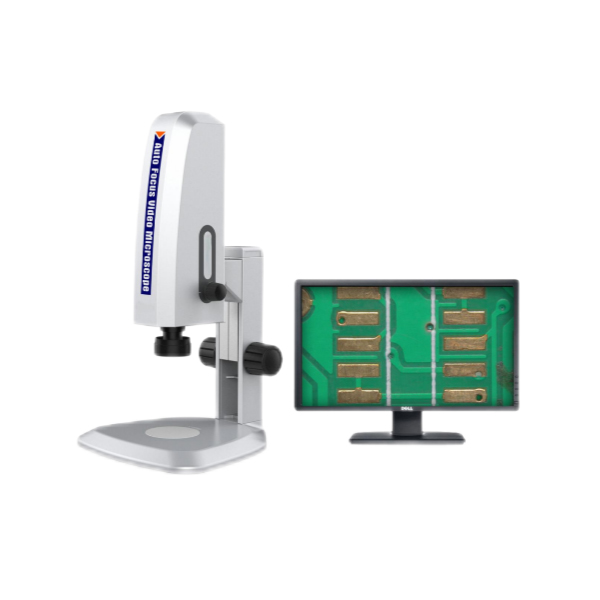

ULM-V-200 auto focus video microscope
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
ULM-V-200 auto focus video microscope
Integral design, exquisite, fashion, generous;
With high definition 0.7~4.5X parallel continue zoom lens, it is more
convenient and fast to switch objective magnification;
With adjustable LED surface reflection illumination, is able to control
brightness independently;
With 2 million pixel auto focus camera, no need to waste time for manual
focus frequently.
Product Details:
|
Product Name |
Auto Focus Video Microscope |
|
Model |
ULM-V-200 |
|
Code# |
451-420 |
|
Electronic Magnification |
32X~206X( VGA 4:3 21”Monitor；） |
|
Optical Objective |
0.7X~4.5X Horizontal Zoom Lens |
|
Zoom ratio：6.5:1 |
|
|
0.5X C-mount Camera Adapter |
|
|
Camera Parameters |
2 million pixel (1920*1080) |
|
Image Size:1/2.86” |
|
|
Frames Per Second：30fps |
|
|
Camera Function |
Auto Focus |
|
Cross Line |
|
|
Output： HDMI |
|
|
White Balance; Brightness Control; Digital Noise Reduction |
|
|
Illumination |
Surface: Adjustable LED Surface Illumination |
|
Ring Fiber Illumination Optional |
|
|
Microscope Stand |
Z-axis Travel: 100mm |
|
Coarse Lifting System |
|
|
Electrical Parameters |
AC90~240V；50~60HZ |
|
Dimension |
310*285*500 mm |
|
Weight |
6Kg |
