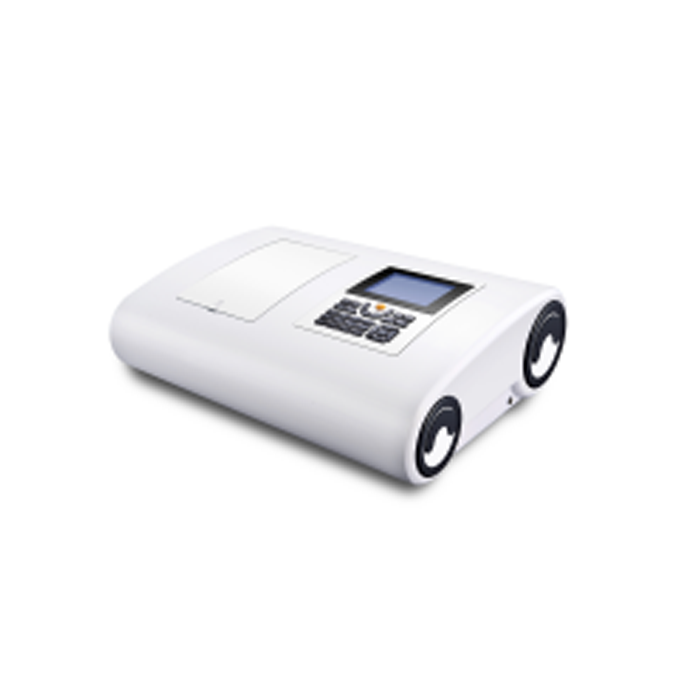

UV-9000 Double Beam UV Visible Spectrophotometer with Long Optical Path

Product Overview

The double beam uv visible spectrophotometer is a high-performance laboratory instrument designed for accurate and stable UV-Visible spectrophotometric analysis. With a double beam optical system, 520 mm long optical path, rigid optical structure, and automatic calibration function, it provides reliable measurement performance for routine and advanced laboratory testing.

Available in UV-9000, UV-9000A, and UV-9000S configurations, the instrument covers a wavelength range of 190–1100 nm and supports spectrum scanning, standard curve analysis, kinetics, multi-wavelength measurement, and DNA/protein testing. Its stand-alone operating system allows users to perform key analysis functions directly from the instrument without relying on a PC.

Key Features

Double Beam Optical System

The double beam optical design helps reduce the influence of circuit fluctuations and stray light, improving measurement stability and repeatability. It is suitable for laboratories requiring consistent UV-Visible analysis over extended operating periods.

Powerful Stand-Alone Operation

The built-in operating system allows users to perform spectrum scanning, standard curve analysis, kinetics, multi-wavelength measurements, and DNA/protein testing directly on the instrument. This provides greater flexibility for routine laboratory analysis.

520 mm Long Optical Path

The unique 520 mm long optical path improves wavelength resolution and contributes to more precise spectral analysis. It is particularly useful when accurate identification and measurement of absorption peaks are required.

Rigid Optical Structure

All major optical components are mounted on a rigid 16 mm-thick die-cast aluminum optical base. This robust construction helps minimize mechanical movement and maintains optical alignment for reliable long-term operation.

One-Button Automatic Calibration

The automatic calibration function simplifies instrument maintenance. With one button, users can perform baseline, wavelength, and dark-current calibration, helping maintain stable measurement conditions and reduce manual adjustment requirements.

6-Inch High-Definition LCD Display

The large LCD display provides a clear interface for viewing measurement data, spectral curves, and operating information directly on the instrument. This makes routine testing convenient even without a connected computer.

USB and Parallel Data Output

The instrument is equipped with USB and parallel ports for convenient data management. The USB connection allows the spectrophotometer to communicate with a computer through the supplied PC software, while the parallel port can be connected to an optional micro thermal printer for direct data printing.

Professional PC Software

The standard PC software provides comprehensive analytical functions, including spectrum scanning, standard curve creation, kinetics analysis, multi-wavelength scanning, and DNA/protein testing. Users can transfer measurement data to a computer for further analysis, storage, and reporting.

Technical Specifications

Parameter	UV-9000	UV-9000A	UV-9000S
Optical System	Double Beam, 1200 Lines/mm Grating	Double Beam, 1200 Lines/mm Grating	Double Beam, 1200 Lines/mm Grating
Wavelength Range	190–1100 nm	190–1100 nm	190–1100 nm
Spectral Bandwidth	1.8 nm	1 nm	0.5/1/2/4 nm
Wavelength Accuracy	±0.1 nm at D2 656.1 nm; ±0.3 nm over full range	Same	Same
Wavelength Repeatability	0.1 nm	0.1 nm	0.1 nm
Photometric Accuracy	±0.2%T (0–100%T)	±0.2%T	±0.2%T
Photometric Repeatability	≤0.1%T (0–100%T)	≤0.1%T	≤0.1%T
Photometric Range	-0.3–3A, 0–200%T, 0–9999C	Same	Same
Stability	≤0.0005A/h at 250 nm and 500 nm	Same	Same
Stray Light	≤0.03%T at 220 nm and 360 nm	Same	Same
Output	USB and Parallel Port	USB and Parallel Port	USB and Parallel Port
Display	320 × 240 Dots LCD	320 × 240 Dots LCD	320 × 240 Dots LCD
Light Source	W Lamp and D2 Lamp	W Lamp and D2 Lamp	W Lamp and D2 Lamp
Power Supply	AC 110/220 V, 50/60 Hz	AC 110/220 V, 50/60 Hz	AC 110/220 V, 50/60 Hz

Standard Accessories

The double beam UV visible spectrophotometer is supplied with essential accessories for routine laboratory operation. The standard package includes one spectrophotometer unit, one set of PC software, four 1 cm glass cuvettes, two 1 cm quartz cuvettes, one power cord, one user manual, and one dust cover.

Applications

With its wide 190–1100 nm wavelength range and multiple analytical modes, the instrument can support UV-Visible testing in research laboratories, quality control laboratories, educational institutions, pharmaceutical analysis, chemical testing, biotechnology, food analysis, and other laboratory applications.

Its combination of double beam optics, high wavelength resolution, automatic calibration, stand-alone operation, and computer-based analysis makes it suitable for laboratories that require dependable spectral measurement and flexible data processing.

Why Choose This Double Beam UV Visible Spectrophotometer

The instrument combines a robust optical structure with advanced measurement and data-processing functions in a practical laboratory platform. The long optical path helps improve wavelength resolution, while the double beam configuration supports stable measurements. Automatic calibration reduces routine setup work, and the large LCD display enables direct operation and result viewing.

For laboratories looking for a double beam uv visible spectrophotometer with broad wavelength coverage, flexible analytical functions, convenient data output, and reliable optical stability, the UV-9000 series provides a comprehensive solution for everyday UV-Visible analysis.
