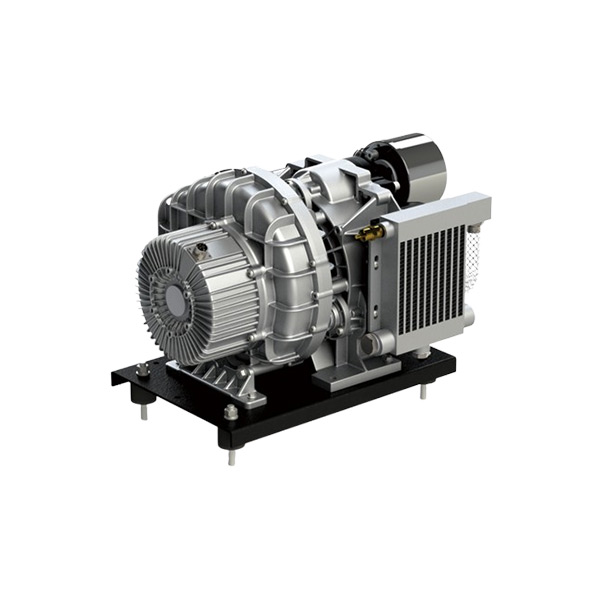

Vehicle Air Brake Pump

Features

Oil-free scroll air compressor (referred to as “vehicle air pump”) is a new
generation of oil-free scroll air compressor for new energy vehicles which
developed and produced by GaoLing Technology. They have the advantages of
compact structure, light weight, low noise, less maintenance, high efficiency,
energy saving and other excellent technical performances. It is greatly suitable
for the supply of compressed air for various types of rail vehicles and new
energy vehicles, including EMUS, CRH train, subways and light rail train and so
on.

Technical Specifications

MODEL NO.	G03ZP	G05ZP
Motor Type	IPMSM	IPMSM
Power(kW)	2.2(3)	3.7
Rated Voltage (V)	AC380	AC380
Rated Speed (rpm)	3000	3000
Max Pressure (MPa)	1.0	1.0
Capacity (L/min)	210(1.0MPa)	360(1.0MPa)
Motor Phase Number	3	3
Discharge Temperature (℃)	＜78	＜80
Cooling Method	Forced air cooling
Working Temperature Range (℃)	-40℃~55℃
Protection Level	IP67
*Dimension (LWH)mm*	473360314	502400353
Weight (kg)	29	43
