Product Description

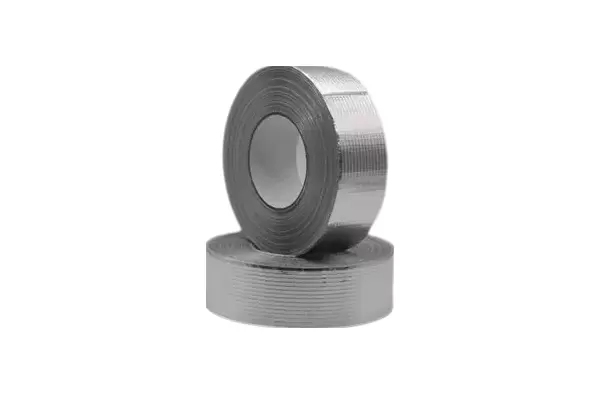

Woven Fiberglass Mesh Aluminum Foil Tape is a high-performance composite adhesive tape combining aluminum foil, woven fiberglass mesh reinforcement, pressure-sensitive adhesive, and release liner. The aluminum foil layer provides excellent heat reflection and moisture resistance, while the fiberglass mesh structure improves dimensional stability, flexibility, and mechanical strength.

Designed for industrial insulation, HVAC systems, fire protection applications, and equipment protection, this aluminum foil mesh tape offers reliable bonding performance and excellent conformability on irregular surfaces, corners, and curved areas.

Product Structure

The tape is manufactured through a multi-layer lamination process:

• Aluminum foil surface layer

• Woven fiberglass mesh reinforcement layer

• High-performance pressure-sensitive adhesive layer

• Release paper or film liner

The woven mesh structure provides additional flexibility while maintaining sufficient tensile strength for demanding applications.

Product Features

Excellent Flexibility & Conformability

The open woven fiberglass mesh structure allows the tape to adapt easily to uneven surfaces, curved areas, and complex shapes, making installation faster and more efficient.

Heat Reflection & Moisture Resistance

The aluminum foil layer provides excellent thermal reflection performance and helps protect insulation systems from moisture penetration.

Reinforced Mechanical Strength

The fiberglass mesh reinforcement improves durability and dimensional stability compared with standard aluminum foil tapes.

Strong Adhesion Performance

Available with solvent-based or water-based adhesive options to meet different application requirements.

Easy Installation

The flexible structure and pressure-sensitive adhesive design allow quick application without additional heating or special tools.

Main Applications

Woven Fiberglass Mesh Aluminum Foil Tape is widely used in:

HVAC & Thermal Insulation

• Air conditioning duct insulation

• Pipe insulation wrapping

• Thermal insulation system sealing

• Heating and ventilation equipment

Industrial Protection

• Outdoor equipment protection

• Insulation material fixing

• Surface protection of metal components

• Sealing and repairing applications

Fire Protection Applications

• Building fire protection systems

• Insulation material reinforcement

• Infrastructure protection projects

Home Appliance Industry

• Internal insulation applications

• Heat shielding components

• Protective bonding solutions

Technical Specifications

Product Tolerance

• Aluminum Foil Thickness: ±0.005 mm

• Total Thickness: ±0.01 mm

• Width: ±0.5 mm

• Length: ±0.2 m

Storage Conditions

To maintain optimal product performance, store the tape in a cool and dry environment.

Recommended storage conditions:

• Temperature: -5°C to 40°C

• Relative Humidity: <80% RH

• Keep away from direct sunlight and heat sources

Shelf Life

• Solvent-based adhesive: 12 months

• Water-based adhesive & flame-retardant adhesive: 6 months

Advantages

• Aluminum foil provides excellent heat reflection

• Fiberglass mesh improves reinforcement performance

• Flexible design for irregular surfaces

• Strong adhesion and reliable bonding

• Suitable for industrial insulation applications

• Multiple adhesive options available

• Custom sizes and specifications supported

OEM & Customization Service

We provide customized solutions according to customer requirements, including:

• Customized tape width and length

• Different mesh structures

• Adhesive selection

• Liner customization

• Packaging customization

• Bulk production support

With stable manufacturing capability and strict quality control, our woven fiberglass mesh aluminum foil tape provides reliable insulation and protection solutions for global industrial customers.
