Axial type roof fans

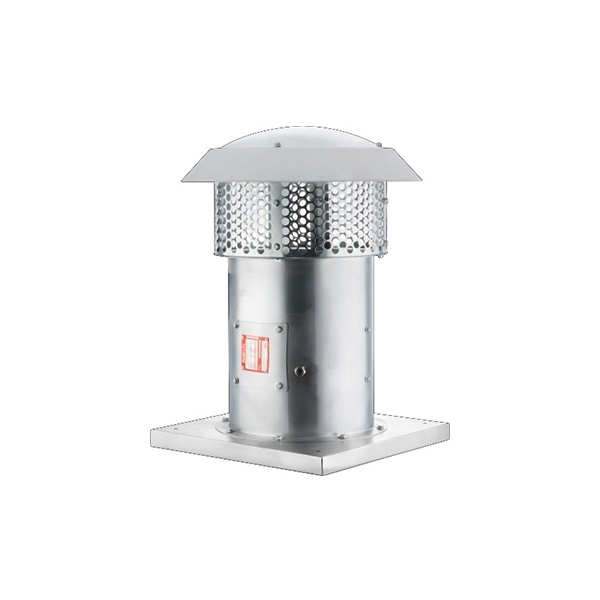

ARMO-R Axial type roof fans – Horizontal outlet

Axial type roof fans

Axial roof fans are used in pressurization fan, fresh air fan and smoke
exhaust fan applications. The enclosure is fire resistant and designed
ac­cording to the noise standard. Smoke evacuation fans are fire resistant.
Fresh air fans can operate at 55 Celcius temperature.

Rotor Features

Fire resistant aluminum alloy casting blades and fan hub.

Wings are airfoil and provide high aerodynamic performance

Wing angles are adjustable. In this way, smoke discharge fans can be demanded
at different flow rates and pressures.

The fan part of the fan is dynamically balanced according to ISO 1940 and
there is no eccentricity during the operation of the fan.

Motor Features

Offers 2, 4 and 6-pole motors,

The motors are IP55 class and Class H insulated,

All electric motor models are approved for continuous oper­ation (Sl) and
Emergency operation (S2).

Usage Areas

Roof type axial fans are used in pressurization fan, fresh air fan and smoke
exhaust fan applications.

General Features

It has EN 12101-3 and CE certificates.

2 hours continuous operation at 400ºC and 300ºC,

There is a wide product range from 400 mm to 1250 mm.

Body Features

Fan body is steel sheet. Body is hot dip galva­nized and corrosion
resistant.

It has short type body and long type body types.

Ease of Maintenance

A maintenance cover is provided to ensure easy maintenance.
