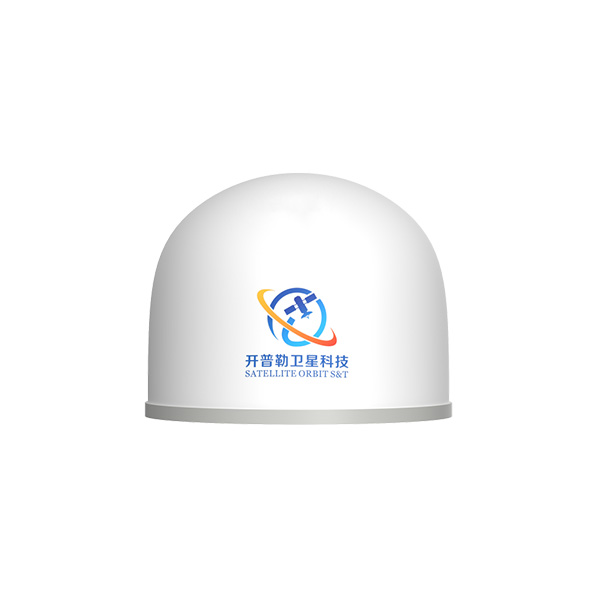

D500 Multi-system Multi-frequency Choke-ring Monitoring Receiver
The KPL-D500 Receiver is a high-precision GNSS receiver compatible with BeiDou, GPS, GLONASS, and GALILEO, supporting all constellations and frequency points.
Description
KPL-D500 is a fully compatible system and frequency point, supports front-end and back- end resolution, supports rover station dynamic and static working mode, built-in 3D choke coil antenna, stronger anti-interference ability, optional high-precision and stable GNSS monitoring all-in-one machine with built-in lithium battery.
Features
· Choke Ring Antenna (Optional): Equipped with a built-in 3D choke ring antenna to counteract refracted signals in complex environments like water surfaces or buildings, enhancing positioning accuracy.
· High Integration: Integrates GNSS modules and MEMS sensors for streamlined operation.
· Diverse Communication Interfaces: Features GNSS/4G/WIFI antennas and integrated communication interfaces, supporting data/file transmission via 4G, WIFI, serial port, NB, and LORA.
· Industrial-Grade Protection: Designed with shockproof, impact-resistant, drop-proof, lightning-proof features and IP67 protection rating.
· Watchdog Function: Enables self-check, self-diagnosis, and self-repair for continuous monitoring up to 5 years.
Applications
· Landslide Monitoring
· Bridge Monitoring
· Subgrade Monitoring
· Large Water Conservancy Dams
· Hydropower Stations
Specifications
| GNSS | BDS： B1I、B2I、B3I、B1C、B2a、B2b1 | |
| GPS： L1 C/A、L1C1、L2P(Y)、L2C、L5 | ||
| GLONASS： E1、E5a、E5b、E6 | ||
| Galileo： G1、G2、G3 | ||
| RTK | Horizontal | 10mm+1.0ppm |
| Vertical | 15mm+1.0ppm | |
| Static | Horizontal | 2.5mm+1.0ppm |
| Vertical | 5.0mm+1.0ppm | |
| Differential data | RTCM3.x | |
| NMEA-0183(4.1) | ||
| Frequency | ≤1Hz | |
| Protocol | TCP、UDP、MQTT | |
| TTFF | Cold start | 50s |
| Initialization Time | ≤10s | |
| Initialization Reliability | >99.9% | |
| Storage | 32G(256G Optional) | |
| Operating Temperature | 70° C | |
| Protection Rating | IP67 | |
