Dy/Tb Diffusion Magnets for High-Coercivity Motor Applications

A Dy/Tb diffusion magnet is a high-performance sintered NdFeB magnet manufactured using Grain Boundary Diffusion (GBD) technology. Unlike conventional methods that distribute heavy rare earth elements throughout the magnet, this process introduces dysprosium (Dy) or terbium (Tb) primarily around the grain boundaries.

This approach can improve intrinsic coercivity (Hcj) and resistance to demagnetization while reducing heavy rare earth consumption. For applications that require stable magnetic performance at elevated temperatures or under strong demagnetizing fields, Dy diffusion magnets and Tb diffusion magnets offer an effective material option.

Shape Features

Jinji manufactures Dy/Tb diffusion magnets in various shapes and sizes to accommodate different industrial requirements.

Available configurations include:

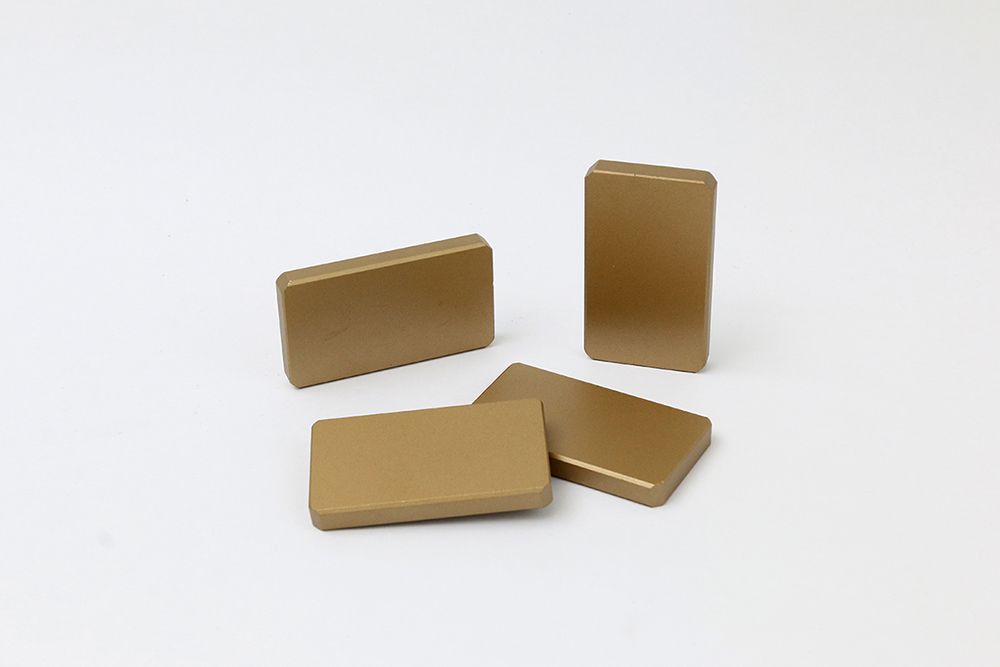

• Block magnets

• Disc magnets

• Ring magnets

• Arc magnets

• Cylinder magnets

• Segment magnets

• Customized special-shaped magnets

Depending on the product design and manufacturing process, diffusion-treated magnets can be produced for applications requiring specific dimensions and magnetic properties.

Typical configurations include motor rotor magnets, permanent magnet generator magnets, servo motor magnets, automotive motor magnets, and other permanent magnet assemblies.

Advantages of Grain Boundary Diffusion Technology

Grain Boundary Diffusion (GBD) improves the coercivity of sintered NdFeB magnets by concentrating heavy rare earth elements near grain boundaries. Compared with conventional approaches that use heavy rare earth elements throughout the magnet, this technology offers several potential advantages:

• Increased intrinsic coercivity (Hcj)

• Improved resistance to demagnetization

• Better magnetic stability at elevated temperatures

• More efficient use of Dy and Tb

• Potential material cost savings through reduced heavy rare earth consumption

The actual benefits depend on the magnet composition, diffusion process, dimensions, and required magnetic properties.

Performance Advantages

Improved Demagnetization Resistance

A key benefit of Dy/Tb diffusion magnets is their ability to achieve higher coercivity. This is valuable in motors, generators, and other applications exposed to high temperatures or strong reverse magnetic fields, where resistance to irreversible demagnetization is important.

Enhanced Thermal Stability

Dy diffusion and Tb diffusion treatments can improve the high-temperature demagnetization resistance of sintered NdFeB magnets. The appropriate magnet grade should be selected according to the application's operating temperature and magnetic load conditions.

Efficient Heavy Rare Earth Utilization

Dysprosium and terbium are valuable heavy rare earth elements. By concentrating these elements near grain boundaries, diffusion technology can reduce the amount required to achieve a specified coercivity compared with some conventional alloying approaches. This can improve resource utilization and help manage material costs.

Material Characteristics

Dy/Tb diffusion magnets use sintered NdFeB as the base material, with diffusion treatment tailored to the required magnetic performance.

Key characteristics may include:

• High magnetic energy product

• Increased intrinsic coercivity

• Improved resistance to demagnetization

• Magnetic properties suited to demanding motor applications

• Different grades for varying temperature requirements

The final performance depends on the base magnet grade, diffusion treatment, and manufacturing parameters.

Manufacturing Process

The production of Dy/Tb diffusion magnets involves multiple controlled manufacturing stages. A typical process includes:

1. Raw material preparation

2. Alloy melting

3. Powder processing

4. Magnetic field orientation and pressing

5. Vacuum sintering

6. Heat treatment

7. Dy or Tb diffusion treatment

8. Precision machining

9. Surface coating

10. Magnetization

11. Final inspection

Diffusion treatment is a critical step in improving coercivity while making more efficient use of heavy rare earth elements.

Dy Diffusion Magnets vs. Conventional Heavy Rare Earth Magnets

This comparison describes general manufacturing principles. Actual performance and cost depend on the selected magnet grade and production process.

Benefits of Tb Diffusion Magnets

Tb diffusion magnets use terbium to increase coercivity and improve resistance to demagnetization. They may be suitable for applications with demanding magnetic stability requirements, particularly when the operating conditions require a high-coercivity magnet grade.

Selection should consider the required magnetic properties, operating temperature, geometry, and overall material cost.

Typical Applications

Electric Vehicle Motors

Permanent magnet motors in electric vehicles operate under changing loads and temperatures. Dy/Tb diffusion magnets can help improve resistance to demagnetization when the selected grade is matched to the motor's operating conditions.

Industrial Motors

Potential applications include:

• Servo motors

• Industrial automation equipment

• Precision control systems

• High-efficiency drive motors

Wind Power Generation

Permanent magnet generators may benefit from diffusion-treated NdFeB magnets when higher coercivity and resistance to demagnetization are required.

Automotive Components

Applications may include electric power steering systems, drive motors, pumps, actuators, and hybrid vehicle systems, depending on the magnetic design requirements.

Energy-Efficient Equipment

Dy/Tb diffusion magnets can also be considered for high-efficiency generators, renewable energy equipment, and other systems that require stable permanent magnet performance.

Product Specifications and Customization

Jinji can manufacture Dy/Tb diffusion magnets according to customer requirements. Customization options may include:

• Magnet grade and magnetic property selection

• Customized dimensions and shapes

• Precision machining

• Surface coating options

• Magnetization direction and patterns

Engineering support can help match magnet specifications to the intended application, available installation space, operating temperature, and required coercivity.

Surface Coating Options

Sintered NdFeB magnets are susceptible to corrosion, so an appropriate surface treatment is important for many applications. Available coating options may include:

• Nickel-copper-nickel (Ni-Cu-Ni)

• Zinc

• Epoxy

• Phosphate

• Electrophoretic coating

The suitable coating depends on the operating environment, corrosion requirements, and product specifications.

Custom Manufacturing Service

Jinji provides customization support for customers with specific magnet design and production requirements. Services may include prototype development, small-batch production, volume manufacturing, material selection, and application-oriented engineering consultation.

The manufacturing plan can be determined according to the required magnetic properties, dimensions, coating, and order volume.

Quality Control

Quality inspection helps maintain consistency throughout magnet production. Relevant procedures may include:

• Raw material inspection

• Manufacturing process control

• Magnetic property testing

• Dimensional inspection

• Surface coating inspection

• Final product verification

Inspection requirements can be tailored to the product specifications and application.

Packaging and Shipping

Protective packaging helps prevent damage and reduce corrosion risks during storage and transportation. Depending on the product and shipping requirements, options may include anti-magnetic packaging, moisture protection, protective foam, cartons, and wooden cases.

Shipping arrangements may include air freight, sea freight, express delivery, and railway transportation, subject to destination and carrier requirements.

Frequently Asked Questions

What is the main advantage of a Dy/Tb diffusion magnet?

Its main advantage is the ability to improve coercivity and resistance to demagnetization while using heavy rare earth elements more efficiently.

How does a Dy diffusion magnet differ from a conventional NdFeB magnet?

A Dy diffusion magnet receives dysprosium through a grain boundary diffusion process. This can increase coercivity without requiring the same distribution of heavy rare earth elements throughout the magnet.

When should a Tb diffusion magnet be considered?

A Tb diffusion magnet may be appropriate when an application requires particularly high coercivity or resistance to demagnetization. The final choice depends on operating conditions and target magnetic properties.

Can Dy/Tb diffusion magnets be customized?

Yes. Dimensions, shapes, magnetic grades, coatings, and magnetization arrangements can be specified according to application requirements and manufacturing capabilities.

Which industries use Dy/Tb diffusion magnets?

Common applications include electric vehicle motors, industrial motors, automation equipment, permanent magnet generators, and other systems requiring high-coercivity NdFeB magnets.

Dy/Tb Diffusion Magnet Solutions from Jinji

Founded in 1998, Jinji specializes in the research, manufacturing, and sales of sintered NdFeB magnets. Its Dy/Tb diffusion magnet solutions are designed for applications requiring enhanced coercivity and reliable magnetic performance.

By matching magnet grades, diffusion treatment, dimensions, and surface coatings to the intended application, Jinji supports customers in selecting permanent magnet solutions for modern industrial equipment.
