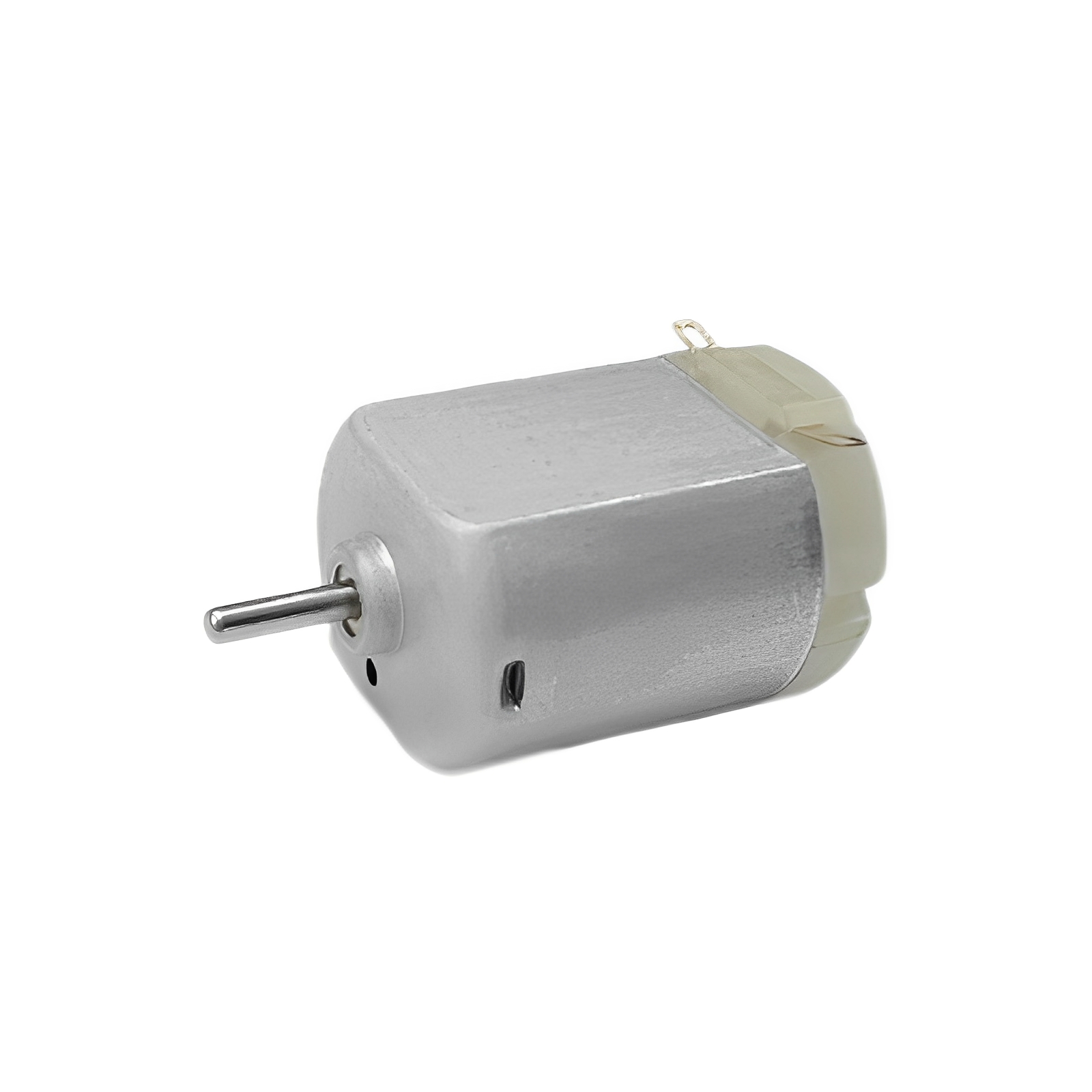

Ecomotor-F140C Brushed DC Micro Motor(Personal Care)
Motors are mainly used in:
Personal Care Product
Toys and Models

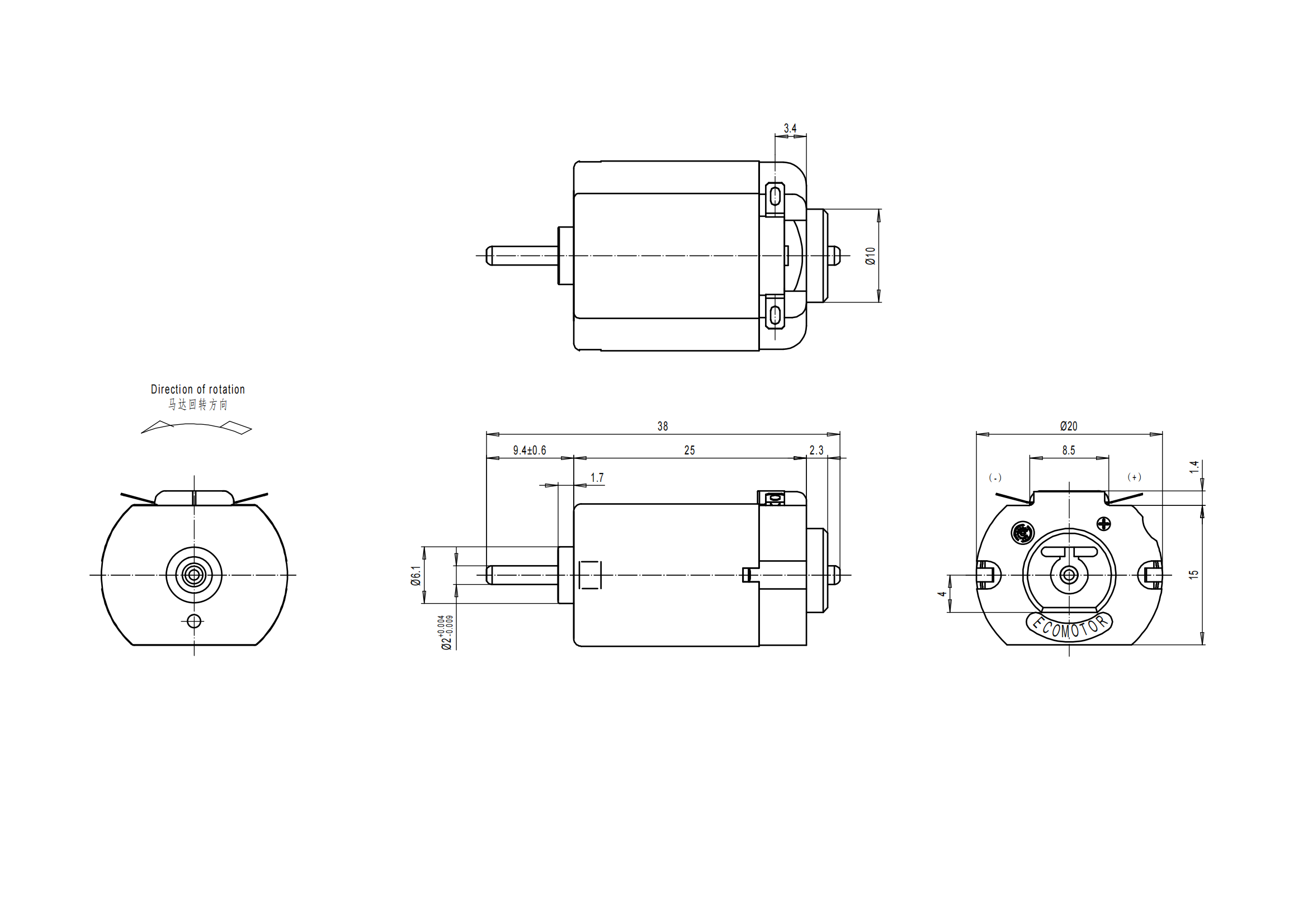

F140C Brushed DC Micro Motor Drawings And Product Performance Are As Follows:

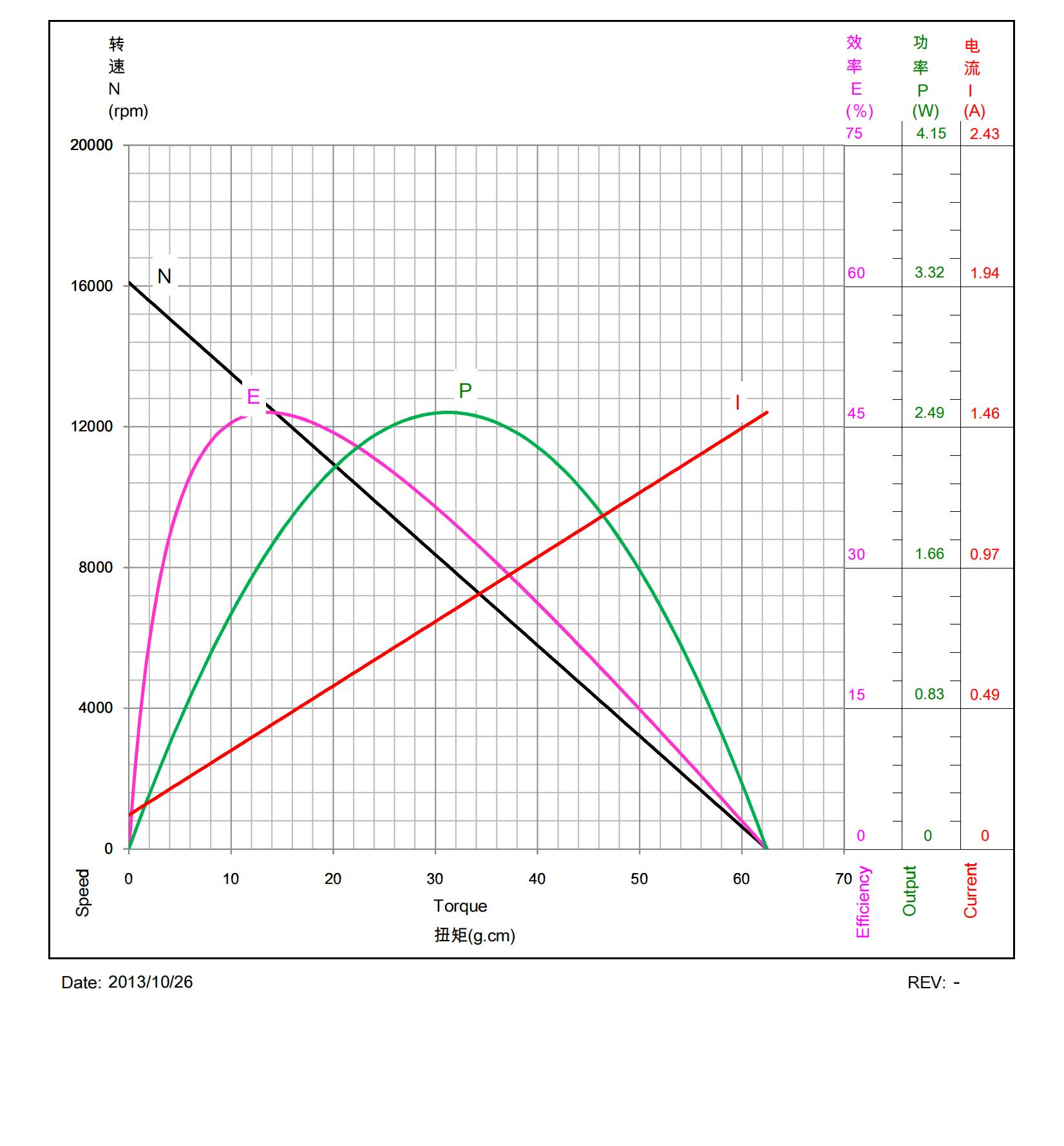

F140C-NN-14180 9V Personal Care Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
F140C-NN-14180 |
9.0 |
0.117 |
16099 |
0.420 |
12590 |
13.6 |
46.5 |
0.811 |
8050 |
31.2 |
2.58 |
1.506 |
62.4 |

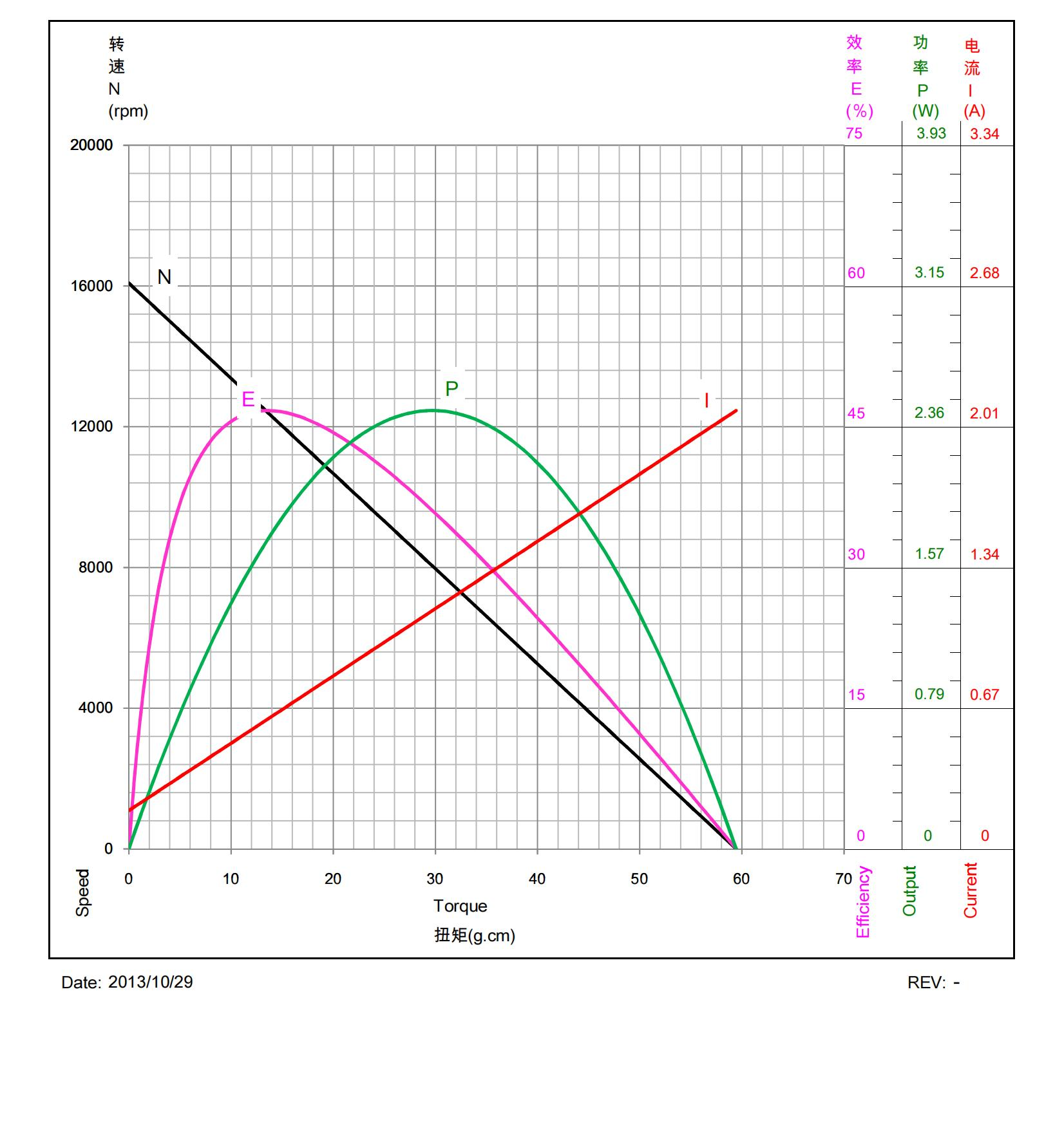

F140C-NN-16120 6V Personal Care Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
F140C-NN-16120 |
6.0 |
0.182 |
16084 |
0.616 |
12415 |
13.6 |
46.7 |
1.133 |
8042 |
29.7 |
2.45 |
2.083 |
59.4 |
