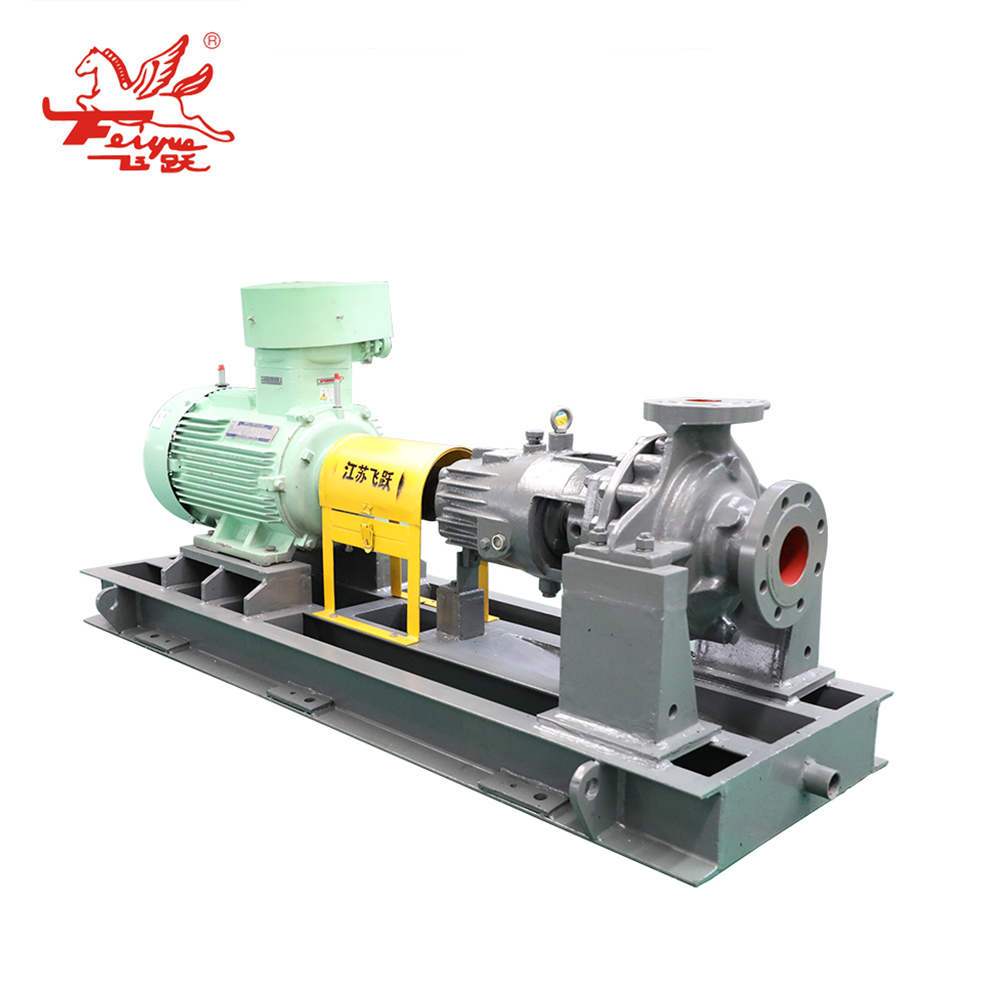

FEP series single stage centerline mounted centrifugal pumps
The pump type FEP ( OH2 ) is a series of horizontal overhung center line mounted, single stage, single suction heavy duty centrifugal pumps with diffuser…
FEP series single stage centerline mounted centrifugal pumps
Pump Information
● DESIGN STANDARD: API610
● FLOW RATE: 3~2600m3/h
● HEAD: 4~300m
● APPLIED TEMPERATURE: -40~450℃
● MAX PRESSURE: 5.0Mpa
General Description
OH2 pump is designed and manufactured according to API610 Standard.
Featuring:
1.Heavy duty, center line mounted, radially split casing
2.Unparalleled cavitation performance, low NPSHr
3.Wide performance range, close interval of capacity and head, convenient
type selection
4.High standardization and generalization, impellers and bearings of OH1 are
interchangeable
5.Three cooling methods of bearing: air cooling, fan cooling and water
cooling. Users select different methods according to working temperature.
6. Self venting casing
Applications:
Fluid Handling in Refineries and Petrochemical Industry
High-temperature and High-pressure Critical Applications in Chemical and
Related Industries
Upstream, Booster
Midstream, Process Transfer, Bottom Reflux, Propane/Butane/LPG Treatment,
Diesel/Gasoline/Naphtha/Lubricating Oil, etc.,
Sodium Carbonate/Caustic Sour Water, MEA/DEA/TEA
Fertilizer, Urethane/Lean and Semi-lean Solutions, NH3 Feed, Other Removal
Applications
Power Plant, Hot Water Circulation, Condensate Transfer, Fuel Oil
Liquid gas plants (LNG)
