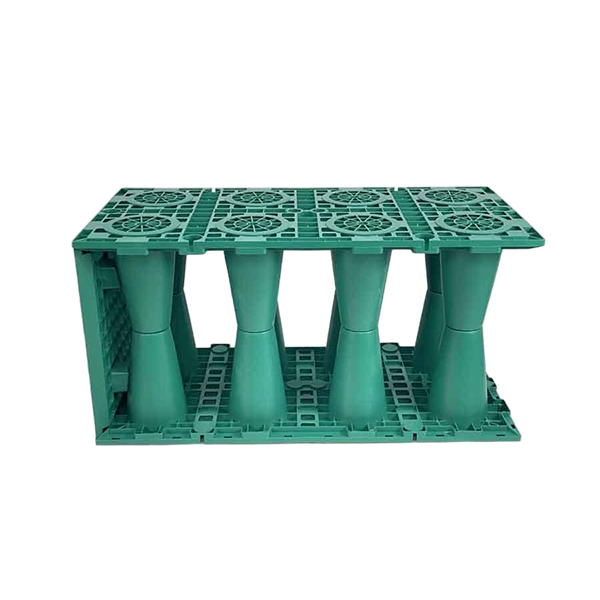

PP Rainwater Module 50T(Green)
PP plastic modules are injection-molded from polypropylene. By enveloping the structure with a composite geotechnical membrane, the system can function as either a storage reservoir.
PP Rainwater Module 50T(Green)
Model Number:XH-MK1000
Dimension:L*W*H=1000*500*500(mm)
Weight:9.2kg-10kg(1000*500*250 The weight of a single piece is
4.6kg-5.0kg)
The aforementioned weight excludes the side panels,which weight around
1.0kg
Compressive Strength:Vertical Compressive Strength 500kN/㎡,
Lateral Compressive Strength 150kN/㎡.
Porosity:95%
Support Column Wall Thickness:Small End 4.5mm,Large End 3.0mm
(Average Wall Thickness 3.75mm)
